The Clean Tunnel Oven G-M168 is a continuous thermal processing system designed for clean production
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

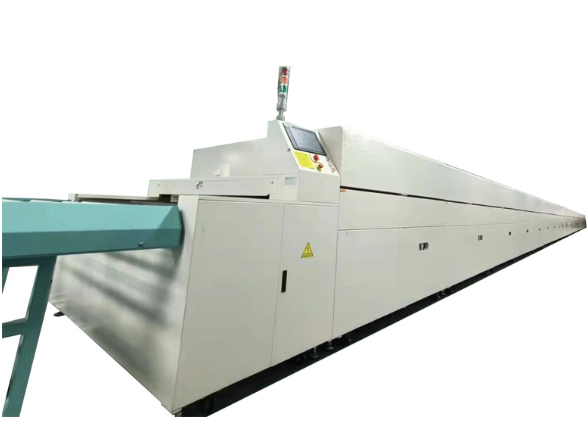

The Clean Tunnel Oven G-M168 is a continuous thermal processing system designed for clean production environments. It adopts a long multi-zone heating structure, PET-FILM & COVERLEN heat-resistant conveyor belt, and hot air circulation technology to achieve stable transportation and uniform heating performance.
The equipment is suitable for cleanroom drying, curing, and thermal treatment processes requiring low particle generation. With Class 1000 cleanliness design, OMRON temperature control, Siemens PLC automation system, and MES integration capability, it provides reliable performance for high-standard production lines.
The Clean Tunnel Oven G-M168 is widely used for:
3C electronic component drying and curing
LCD and optical module processing
Semiconductor and precision component thermal treatment
Adhesive curing after dispensing
Electronic product coating drying
Cleanroom production line baking processes
Precision parts requiring stable temperature control
| Parameter | Specification |
|---|---|
| Model | G-M168 |
| Equipment Type | Clean Tunnel Oven |
| Power Supply | AC380V, 3 Phase, 50Hz |
| Exhaust Volume | Max. 10.0 m³/min |
| Exhaust Pipe | Ø100 mm × 6 pcs |
| Exhaust Temperature | ≤150℃ |
| Conveyor Speed | 0.3–3.0 m/min adjustable |
| Typical Operating Speed | 0.8 m/min |
| Conveyor Type | PET-FILM & COVERLEN heat-resistant mesh belt |
| Conveyor Belt Width | 1600 mm |
| Conveyor Height | 980 ± 20 mm |
| Heating Zone Structure | 2000 mm × 6 sections |
| Total Heating Length | 12000 mm |
| Temperature Range | 40℃–200℃ |
| Typical Operating Temperature | ≤160℃ |
| Temperature Uniformity | ±3℃ (excluding inlet/outlet areas) |
| Heating Method | Medium-wave quartz electric heating tubes |
| Temperature Control Accuracy | ±0.3% FS |
| Temperature Controller | OMRON PID controller + SSR output |
| Temperature Monitoring | 6-point temperature recorder with USB data export |
| Airflow Direction | Top-down hot air circulation |
| Insulation Material | 128K high-density ceramic fiber insulation |
| Control System | Siemens PLC + Siemens touchscreen |
| MES Integration | Supported |
| Cleanliness Level | Class 1000 |
| External Surface Temperature | ≤45℃ |
Class 1000 Clean Design
The G-M168 adopts a low-particle structure and clean chamber design to meet clean production requirements.
Long Multi-zone Heating Structure
Six heating sections with a total heating length of 12000 mm provide stable and continuous thermal processing.
Wide Conveyor Design
The 1600 mm wide PET-FILM & COVERLEN conveyor belt supports larger product loading requirements.
Uniform Heating Performance
Top-down hot air circulation and optimized airflow design ensure stable temperature distribution.
High-efficiency Heating System
Medium-wave quartz heating tubes provide fast heating response and reliable drying performance.
Precision Temperature Control
OMRON PID controller with SSR output ensures accurate temperature adjustment and stable operation.
Clean Transportation System
Roller-supported conveyor design reduces friction and particle generation during operation.
Intelligent Automation Control
Siemens PLC and touchscreen interface support process monitoring and MES integration.
Energy-saving Insulation Structure
High-density ceramic fiber insulation reduces heat loss and improves energy efficiency.
Complete Safety Protection
Equipped with phase sequence protection, overload protection, emergency stop, control circuit protection, and over-temperature protection.
