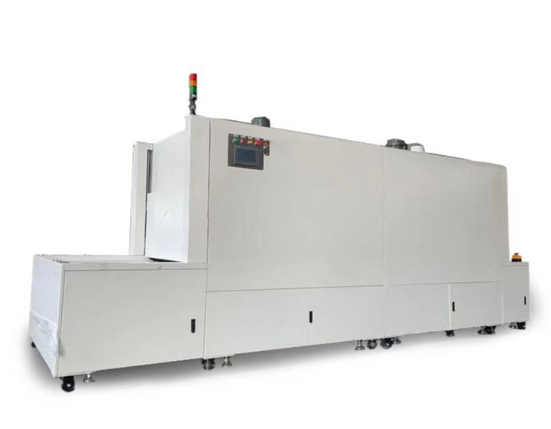

The Clean Tunnel Oven G-M800 is a continuous thermal processing system designed for clean production environments. It adopts a stainless steel chain conveyor, hot air circulation heating, and multi-section temperature control technology to provide stable transportation and uniform heating performance.
The equipment is suitable for precision drying, curing, and heat treatment processes requiring low particle generation. With Class 100 cleanliness design, Siemens PLC control, and MES integration capability, the oven meets the requirements of high-standard automated production lines.
The Clean Tunnel Oven G-M800 is widely used for:
3C electronic component drying and curing
Semiconductor and precision component processing
LCD and optical module manufacturing
Adhesive curing after dispensing
Electronic product coating drying
Cleanroom thermal treatment processes
Precision parts requiring stable temperature control
| Parameter | Specification |
|---|---|
| Model | G-M800 |
| Equipment Type | Clean Tunnel Oven |
| Power Supply | AC380V, 3 Phase, 50Hz |
| Exhaust Volume | Max. 10.0 m³/min |
| Exhaust Pipe | Ø100 mm × 6 pcs |
| Exhaust Temperature | ≤150℃ |
| Conveyor Speed | 0.3–3.0 m/min adjustable |
| Typical Operating Speed | 0.8 m/min |
| Conveyor Type | SUS stainless steel chain conveyor |
| Conveyor Width | 900 mm |
| Heating Zone Structure | 1500 mm × 2 sections |
| Total Heating Length | 3000 mm |
| Temperature Range | 40℃–150℃ |
| Temperature Uniformity | ±3℃ (excluding inlet/outlet areas) |
| Heating Method | Medium-wave quartz electric heating tubes |
| Temperature Control Accuracy | ±0.3% FS |
| Temperature Controller | OMRON PID controller + SSR output |
| Temperature Monitoring | 6-point temperature recorder with USB data export |
| Airflow Direction | Top-down hot air circulation |
| Insulation Material | 128K high-density ceramic fiber insulation |
| Control System | Siemens PLC + Siemens touchscreen |
| MES Integration | Supported |
| Cleanliness Level | Class 100 |
| External Surface Temperature | ≤45℃ |
Class 100 Clean Production Design
The G-M800 adopts a clean chamber structure and particle control design to meet high cleanliness production requirements.
Stable Conveyor System
SUS stainless steel chain conveyor provides smooth transportation and prevents product vibration, jamming, and surface damage.
Uniform Temperature Distribution
The optimized top-down hot air circulation system ensures consistent heating throughout the chamber.
Efficient Heating Performance
Medium-wave quartz heating tubes provide rapid heating and reliable thermal processing.
Precision Temperature Control
OMRON PID temperature control combined with SSR output ensures accurate and stable temperature regulation.
Multi-section Heating Structure
Two independent 1500 mm heating sections provide stable process control and improved heating consistency.
Low Particle Generation Design
Full argon arc welded inner chamber and stainless steel components reduce contamination sources.
Intelligent Automation Control
Siemens PLC and touchscreen operation support production monitoring and MES integration.
Energy-saving Insulation System
High-density ceramic fiber insulation reduces heat loss and improves energy efficiency.
Comprehensive Safety Protection
Includes phase sequence protection, overload protection, emergency stop, control circuit protection, and over-temperature protection.
