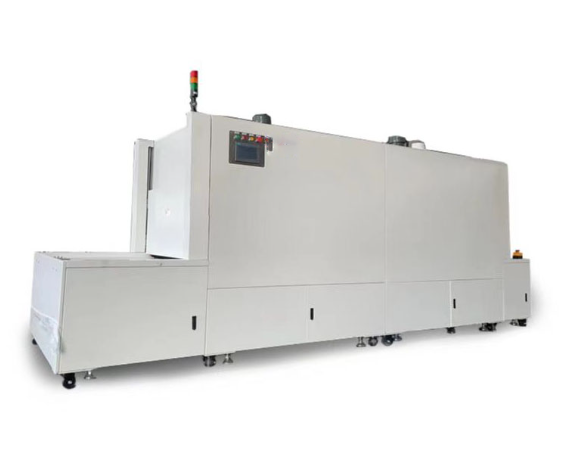

The Clean Tunnel Oven G-C800 is a continuous conveyor heating system designed for clean production environments requiring stable temperature control and low particle generation. The equipment adopts a stainless steel conveyor chain structure, multi-zone heating design, and forced hot air circulation system to provide uniform heating performance.
The tunnel oven is equipped with an OMRON temperature controller, Siemens PLC control system, touchscreen operation interface, and multi-point temperature monitoring system. It is suitable for precision drying, curing, and heat treatment processes in industries with strict cleanliness requirements.
The Clean Tunnel Oven G-C800 is widely used in industries requiring clean and stable thermal processing, including:
3C electronics manufacturing: drying and curing of electronic components, housings, and precision parts.
PCB industry: adhesive curing, ink drying, and electronic material baking processes.
LCD and semiconductor-related applications: clean heating and drying processes.
Medical and laboratory products: thermal treatment requiring controlled contamination.
Precision manufacturing: drying, curing, and heat treatment of sensitive products.
| Parameter | Specification |
|---|---|
| Model | G-C800 |
| Equipment Type | Clean Tunnel Oven |
| Power Supply | AC380V, 3 Phase, 50Hz |
| Exhaust Capacity | Max. 10.0 m³/min |
| Exhaust Pipe | Ø100mm × 6 pcs (external connection provided by customer) |
| Conveyor Speed | 0.3–3.0 m/min adjustable |
| Standard Working Speed | 0.8 m/min |
| Conveyor Type | SUS stainless steel chain conveyor |
| Heating Zone Length | 2000mm per zone |
| Number of Heating Zones | 6 zones |
| Total Heating Length | 12000mm |
| Temperature Range | 40℃–150℃ |
| Maximum Temperature | 150℃ |
| Temperature Uniformity | ≤ ±3℃ (excluding inlet and outlet areas) |
| External Material | SS41 steel plate with anti-rust treatment and high-temperature powder coating |
| Insulation Material | 128K high-density aluminum silicate insulation cotton |
| Heating Element | Medium-wave quartz electric heating tube |
| Air Flow Direction | Hot air circulation from top to bottom |
| Temperature Controller | OMRON PID temperature controller |
| Temperature Control Accuracy | ±0.3% FS |
| Temperature Recording | Six-channel temperature recorder with USB data export |
| Conveyor Belt Specification | PTFE conveyor belt, width 1010mm |
| Cleanliness Level | Class 100 |
| Control System | Siemens PLC + Siemens touchscreen |
| MES Connection | Supported |
| External Surface Temperature | ≤45℃ |
| Safety Protection | Phase sequence protection, overload protection, emergency stop, over-temperature protection, control circuit protection |
(1) High Cleanliness Design
The inner chamber adopts full argon arc welding with stainless steel components. The conveyor is supported by small rollers to reduce friction and particle generation.
(2) Uniform Temperature Control
The multi-zone heating structure and special air circulation design ensure stable temperature distribution throughout the oven.
(3) Stable Conveyor System
The stainless steel chain conveyor provides smooth product transfer without vibration, jamming, contamination, or product damage.
(4) Advanced Control System
Equipped with Siemens PLC, touchscreen interface, PID temperature control, and real-time temperature recording for convenient operation and process monitoring.
(5) Energy-Efficient Insulation Structure
The 128K high-density insulation material reduces heat loss, improves energy efficiency, and maintains a lower external surface temperature.
(6) Flexible Production Configuration
Conveyor speed, heating zones, conveyor width, and oven dimensions can be customized according to production requirements.
(1) What products can be processed in the Clean Tunnel Oven G-C800?
The Clean Tunnel Oven G-C800 is mainly used for drying, curing, and heat treatment processes of electronic components, PCB products, precision parts, and other products requiring clean production conditions.
(2) What is the temperature range of the G-C800 tunnel oven?
The standard operating temperature range of the G-C800 Clean Tunnel Oven is 40℃ to 150℃. The heating temperature and process parameters can be customized according to customer production requirements.
(3) How does the tunnel oven maintain a clean working environment?
The oven uses a stainless steel internal structure, low-particle design conveyor support, and optimized airflow circulation to reduce contamination during continuous heating processes.
(4) Can the conveyor system and heating zones be customized?
Yes. The conveyor width, conveyor type, heating zone number, oven length, and production speed can be customized according to product size and production process requirements.
(5) Does the Clean Tunnel Oven support automated production lines?
Yes. The G-C800 uses Siemens PLC and touchscreen control systems and can connect with MES systems for production data management and automated factory integration.
