Taber Abrasion Tester：Precision Surface Wear Testing Instrument

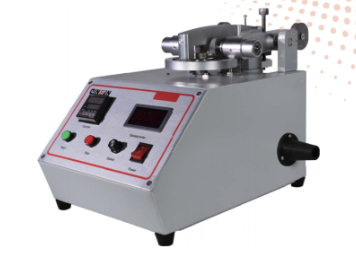

The Taber Abrasion Resistance Tester, also known as Taber Abraser or Taber Abrader, is a precision instrument used to evaluate the wear resistance of materials and finished products. Equipped with a rotary platform and dual abrading wheels, it provides reliable, repeatable, and accurate abrasion testing for a wide range of materials including leather, textiles, coatings, paints, glass, ceramics, paper, laminates, rubber, and plastics.

The single-platform design features a precision drive system and transmission device, ensuring smooth, low-noise operation for a comfortable and dependable testing experience.

Application Fields

Textiles & Fabrics: Evaluate wear resistance of cotton, polyester, blended fabrics, and nonwovens.

Leather & Coatings: Test abrasion durability of natural leather, synthetic leather, paints, and varnishes.

Plastics & Rubber: Assess surface wear performance of plastics, rubber, and elastomers.

Paper & Packaging: Determine wear resistance of cardboard, laminates, and printed materials.

Ceramics & Glass: Test decorative and functional wear properties.

Industrial Quality Control: Used in R&D and QC labs to improve material durability and predict service life.

Test Principle

Mount the specimen on the rotary turntable (specimen holder).

Two abrasive wheels attached to pivoted arms rub against the sample under a controlled downward pressure.

Driven by the turntable, one wheel moves inward toward the center, and the other moves outward toward the edge.

Abrasion resistance is assessed by average mass/volume loss of the specimen or the number of cycles to reach the end-point.

Applicable Standards

ISO: ISO 9352, ISO 5470, ISO 7784

ASTM: ASTM D1044, ASTM D3884, ASTM D4060, ASTM D1175, ASTM D4685

Chinese Standards: GB/T 5137.1, QB/T 2726

German Standards: DIN 53109, DIN 53754, DIN 53799

Others: TAPPI T476, JIS K7204, JIS A1453, JIS K6902, JIS L1096, SATRA TM163

Product Advantages

Versatile Applications: Suitable for fabrics, cardboard, coatings, leather, tiles, glass, natural rubber, plastics, and more.

User-Friendly Operation: LCD control panel with real-time speed display (30–75 RPM adjustable).

Precision Compliance: Meets ASTM-standard 125g pressure; optional loads up to 1250g for customized testing.

Customizable Testing: Preset wear cycles (1–999,999 revolutions) and vacuum suction height adjustment for debris removal.

Durability & Performance: Silent branded motor ensures low-noise operation and long-term reliability.

Consistent Results: Pre-grinding standardization of abrasion wheels guarantees high repeatability.

Product Features

Digital Control Interface: LCD screen with real-time speed and programmable cycle settings.

Advanced Balance System: Interchangeable counterweights (250g, 500g, 750g, 1000g; 125g optional) for precise wheel pressure control.

Adjustable Vacuum System: Height-adjustable suction arm efficiently removes debris during testing.

Modular Abrasion Wheels: Replaceable wheels (CS-10, H-18) and sandpaper discs (S-11) for diverse material testing.

Sample Preparation Kit: Includes sample stickers (S-36) and a diamond wheel polisher for pre-test conditioning.

Technical Parameters

FAQ

1. What materials can be tested?

Suitable for textiles, leather, coatings, plastics, rubber, ceramics, glass, cardboard, and laminates.

2. How is wear measured?

Wear is measured by mass/volume loss or the number of cycles to reach the end-point.

3. Can wheel pressure and load be adjusted?

Yes. The tester supports adjustable counterweights (125–1250g) to meet ASTM and custom testing requirements.

4. What standards does the machine comply with?

ISO, ASTM, GB/T, DIN, JIS, TAPPI, and SATRA standards depending on material and test method.

5. Is it suitable for QC and R&D applications?

Absolutely. Its precision, repeatability, and modular design make it ideal for production QC, R&D, and laboratory research.
