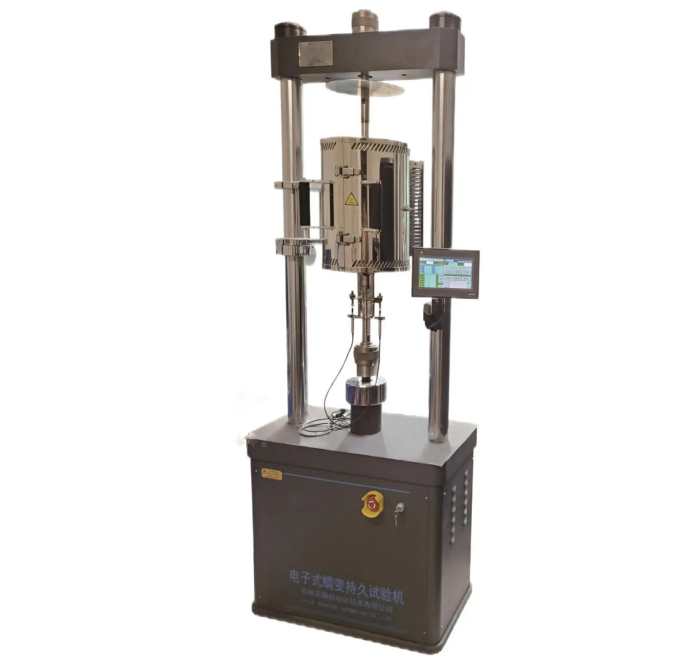

Electromechanical Creep Testing Machine

The Electromechanical Creep Testing Machine is a computer-controlled testing system driven by a servo motor and designed for long-duration mechanical performance testing under controlled loading conditions. It is mainly used to evaluate the creep and stress-rupture behavior of high-temperature alloys, titanium alloys, ferrous metals, and non-ferrous metals. Depending on the selected fixtures and environmental accessories, the system can also perform stress relaxation, high-temperature short-time tensile, cyclic loading, and low-cycle fatigue-related tests.

Its modular structure allows the machine to be configured with different grips, extensometers, furnaces, vacuum systems, and inert-gas chambers for laboratory R&D, production inspection, and quality control.

Application

The Electromechanical Creep Testing Machine is suitable for:

(1) High-Temperature Alloy Testing: Evaluating creep and long-term deformation behavior of nickel-based and other high-temperature alloys.

(2) Titanium Alloy Testing: Studying the mechanical stability of titanium alloys under sustained loading and elevated temperatures.

(3) Metal Materials Research: Testing ferrous and non-ferrous metals for creep, stress rupture, and stress relaxation characteristics.

(4) Aerospace Materials: Evaluating materials and components used in aircraft engines and other high-temperature aerospace applications.

(5) Energy Industry: Supporting material evaluation for power-generation and other high-temperature service environments.

(6) Automotive Engineering: Testing metallic materials and components subjected to long-term mechanical or thermal loads.

(7) Materials Science and Engineering: Supporting research into deformation mechanisms and long-term material behavior.

Standards

The supplied information indicates that the system can be configured for GB, ISO, and ASTM testing requirements through appropriate grips and fixtures. The exact standard depends on the material, specimen geometry, temperature, loading method, and test type.

(1) ASTM E139 — Standard Test Methods for Conducting Creep, Creep-Rupture, and Stress-Rupture Tests of Metallic Materials

(2) ISO 204 — Metallic materials — Uniaxial creep testing in tension — Method of test

(3) ISO 26268 — Metallic materials — Uniaxial stress-rupture testing in tension — Method of test

(4) GB/T 2039 — Metallic materials — Uniaxial creep testing in tension — Method of test

(5) GB/T 15260 — Metallic materials — Stress-rupture testing in tension

Parameters

Features

(1) High-strength frame and rigid guidance help maintain fixture alignment during long-duration testing.

(2) Central lead screw configuration provides stable axial loading and is suitable for creep testing.

(3) Precision bearings, ball screw, reinforced crosshead, and base support long-term operating stability.

(4) Servo-driven loading system provides precise force control and smooth operation.

(5) Optional preload assembly can maintain continuous axial force during tensile or compression loading.

(6) Spherical fixing mechanism allows automatic alignment and reduces bending stress caused by misalignment.

(7) Motion-limit protection and sensor overload protection provide additional operating safety.

(8) Precision reducer and stepless speed control support stable positioning and loading.

(9) Long travel and an extended test space provide room for high-temperature furnaces, vacuum furnaces, and inert-gas chambers.

(10) Integrated temperature-control components simplify operation and maintenance.

(11) Modular architecture facilitates periodic maintenance, upgrades, and configuration changes.

(12) A range of fixtures and environmental accessories allows the system to be configured for different test temperatures and material applications.
