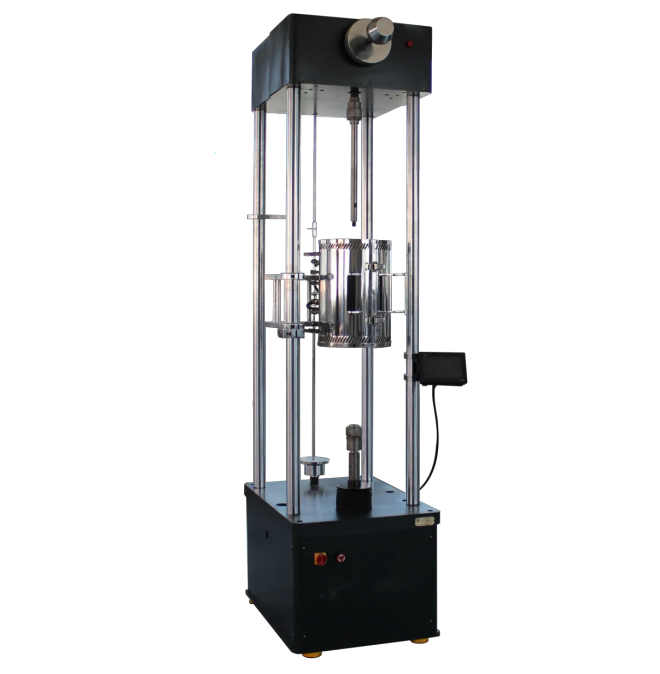

Lever-Loaded Creep Testing Machine

The Lever-Loaded Creep Testing Machine is a classic creep testing system that applies a constant load through a lever-and-dead-weight mechanism. It is designed for long-duration mechanical testing of high-temperature alloys, titanium alloys, ferrous metals, and non-ferrous metals. The system can perform creep, stress-rupture, and crack growth/propagation tests, making it suitable for materials research, aerospace, energy, automotive, and other industries where long-term material behavior needs to be evaluated.

The mechanical loading principle provides a stable constant force for extended tests, while the modular fixture design allows the machine to be configured for different specimens, temperatures, and testing standards.

Application

The machine is suitable for:

(1) High-Temperature Alloy Testing：Evaluating the long-term deformation and rupture behavior of high-temperature alloys under sustained loading.

(2) Titanium Alloy Testing：Studying creep and stress-rupture properties of titanium alloys used in demanding service environments.

(3) Ferrous and Non-Ferrous Metals：Testing the long-term mechanical behavior of steel, aluminum alloys, copper alloys, and other metallic materials.

(4) Aerospace Materials：Evaluating materials intended for engines, structural components, and other applications exposed to sustained loads and elevated temperatures.

(5) Energy Industry：Supporting material evaluation for power-generation and other long-term high-temperature applications.

(6) Automotive Materials：Assessing the long-term mechanical stability of metallic materials and components.

(7) Materials Research and Quality Control：Providing long-duration test data for material development, production verification, and quality assessment.

Standards

The supplied product information states that the machine can be configured for GB, ISO, and ASTM testing requirements through appropriate fixtures and accessories.

(1) ASTM E139 — Standard Test Methods for Conducting Creep, Creep-Rupture, and Stress-Rupture Tests of Metallic Materials

(2) ISO 204 — Metallic materials — Uniaxial creep testing in tension — Method of test

(3) ISO 26268 — Metallic materials — Uniaxial stress-rupture testing in tension — Method of test

(4) GB/T 2039 — Metallic materials — Uniaxial creep testing in tension — Method of test

(5) GB/T 15260 — Metallic materials — Stress-rupture testing in tension

Parameters

Features

(1) Classic lever-and-dead-weight loading system provides stable constant loading for long-duration tests.

(2) Optimized lever ratio and leveling structure improve loading stability.

(3) Low-friction lever pivot design helps maintain consistent force transmission during extended testing.

(4) Custom dead weights allow controlled loading across the available load range.

(5) High-strength frame and rigid guidance help maintain fixture alignment.

(6) Automatic specimen-break detection can terminate the test when specimen failure occurs.

(7) Lever leveling and weight loading are designed for straightforward operation.

(8) Limit and overload protection improve operational safety.

(9) Spherical fixing mechanism supports automatic alignment and helps control bending stress within the specified requirement.

(10) Long travel and extended test space accommodate optional high-temperature, vacuum, and inert-gas equipment.

(11) Optional extensometers and creep-specific fixtures support different creep-testing configurations.

(12) Modular construction facilitates maintenance, upgrading, and replacement of test accessories.
