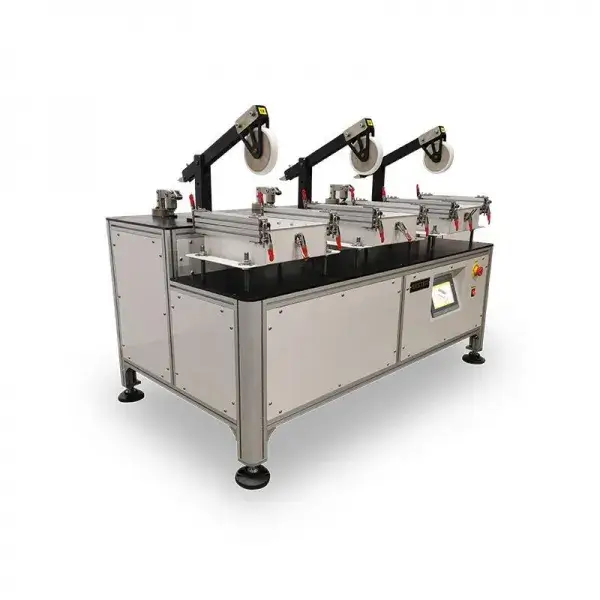

Dynamic Seam Fatigue Tester

The Dynamic Seam Fatigue Tester is a dynamic seam fatigue tester specifically designed to measure the strength of seams in upholstery covered with standard composite foam padding. This tester works by applying cyclic loads in the form of pressure, impact, and penetration to the seam surface to assess its durability and resistance to damage.

Function and Application:

This tester is used to test the three most common types of seams in upholstery:

Warp-to-warp (wale-to-wale) seams

Filling-to-fill (course-to-course) seams

Warp-to-fill (wale-to-course) seams

Working Principle:

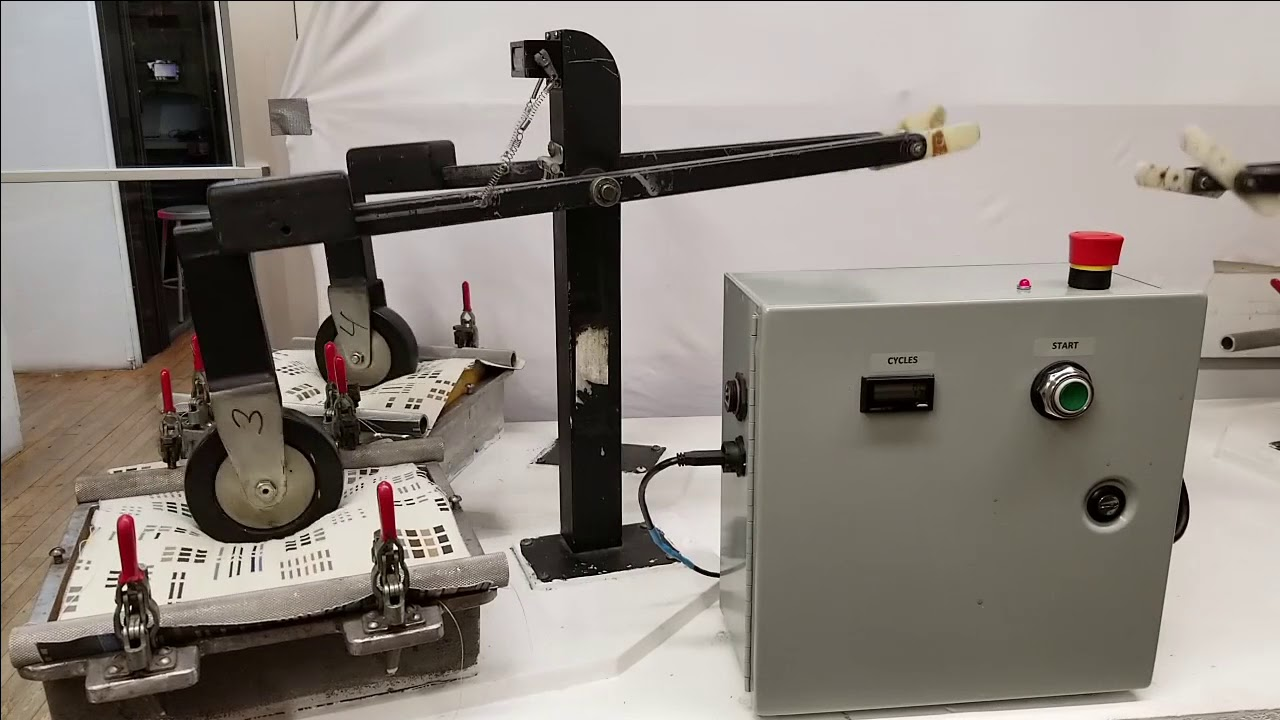

A fabric sample with seams is mounted on a test stand equipped with elastic foam padding. Then, a rubber-coated wheel with a specific weight is dropped from a predetermined height to repeatedly impact the fabric surface. This process is carried out automatically until the required number of test cycles is reached, after which the seams are inspected for damage.

A 127mm (5") diameter rubber-faced wheel impacts the fabric from a height of 150mm (6") with a mass of 3.75 kg (8.25 lbs), 25 times per minute for 7,000 cycles. Additionally, the Dynamic Seam Fatigue Tester has three working positions and six positions, complying with the requirements. Moreover, it can perform 23 or 27 cycles per minute. Thus, it can operate at a relatively high speed.

Applications:

Automotive industry (car seat testing)

Textile and garment industry

Furniture and upholstery industry

Standards:

ASTM D4033

Technical Specifications：

Number of Test Positions: 3

Drive System: Pneumatic Cylinder

Impact Velocity: (0.4±0.03) Hz or (25±2) cycles/minute

Number of Test Cycles: 7,000 cycles

Impact Wheel Weight: 3.75 kg (8.25 lbs)

Drop Height: 150 mm (6 in)

Sample Size: 190 x 255 mm

Power Supply: AC 220V, 50/60 Hz, 1°C

Machine Dimensions: 160 x 90 x 145 cm

Machine Weight: 150 kg

Standard Accessories：

1 Complete Test Equipment Set

1 Sample Clamp Unit

1 Air Hose

1 Power Cord

Optional Accessories

Air Compressor (optional)

Why Do We Need a Dynamic Seam Fatigue Test?

The dynamic seam fatigue testing machine is designed to test the seam fatigue of automobile seats, domestic sofas, and other surface materials. The surface materials of sofa seats, such as leather, synthetic leather, fabric, and so on, are stitching structures. And the seam strength of the connection and fatigue resistance for these materials put a direct effect on the service life of the seat. Apart from that, we can also predict the life effectively from the seat. In addition, we can provide a reference value for improving the service life of the sofa seat by testing the strength and life of the material seam.
