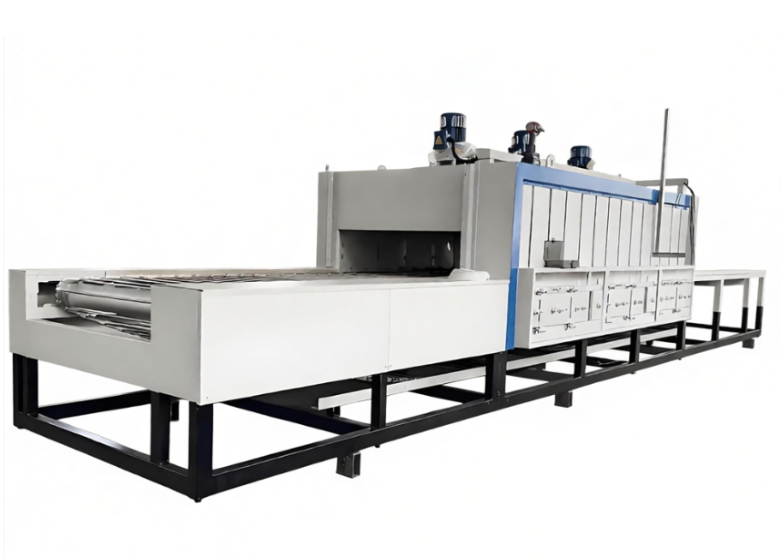

Electronic Hardware Parts Paint Drying Furnace

The Electronic Hardware Parts Paint Drying Furnace is an automated thermal processing equipment specially designed for the surface coating and curing of precision electronic hardware components.It adopts a high-efficiency hot air circulation system to rapidly and uniformly cure surface paints or powder coatings. The equipment integrates a precise temperature control system and a safe exhaust ventilation system, effectively preventing coating defects such as bubbling and cracking, while ensuring excellent surface finish and coating adhesion.It is an essential piece of equipment for modern electronic hardware coating production lines.

Product Applications

1. Paint Curing

Used for rapid drying and curing after spray painting of electronic hardware parts, including:

Mobile phone housings

Computer chassis

Precision connectors

Other electronic metal components

2. Stress Relief Treatment

Used for stress-relieving heat treatment of certain metal stamping parts after machining processes.

3. Coating Aging Treatment

Applied for strengthening protective coatings on electronic components and improving weather resistance performance.

4. Moisture Drying

Used for rapid inter-process drying of surface moisture after cleaning of metal parts.

Product Parameters

Product Features

1. Precise Temperature Control

The equipment adopts a microcomputer PID intelligent temperature controller combined with solid-state relay (SSR) output, providing fast response and highly accurate temperature regulation.

2. Uniform Heating Performance

Equipped with a specially designed hot air circulation system and multi-channel airflow structure, ensuring no dead zones and minimal temperature differences throughout the furnace chamber.

3. High Efficiency and Energy Saving

The furnace is fully insulated with high-density aluminum silicate fiber cotton, keeping the external surface temperature close to room temperature and significantly reducing heat loss.

4. Safe Explosion Prevention Design

Configured with:

Independent over-temperature alarm

Automatic power-off protection

Forced exhaust ventilation system

to effectively remove volatile paint gases and improve operational safety.

5. Intelligent Operation

Optional PLC touchscreen control system supports multiple temperature curve settings, providing simple, intuitive, and automated operation.

FAQ

Q1: What types of coatings are suitable for this drying furnace?

A: The equipment is suitable for most electronic hardware coatings, including:

Acrylic paint

Polyurethane paint

Epoxy resin paint

UV curing coatings (requires additional UV light source installation)

Q2: How does the equipment prevent explosion risks caused by paint vapor evaporation?

A: The furnace is equipped with a forced exhaust ventilation system and explosion-proof pressure relief door, which can effectively dilute and discharge flammable gases, ensuring the concentration inside the furnace remains below the safety limit.

Q3: Why do bubbles appear on the product surface during the drying process?

A: This is usually caused by excessive heating speed, where the surface coating cures too quickly and prevents internal solvents from escaping smoothly.

This problem can be solved by adjusting the curing process and setting a gradual temperature rise curve from low temperature to high temperature.

Q4: Does the equipment consume a lot of electricity? What energy-saving designs are included?

A: The equipment mainly consumes more power during the initial heating stage. After reaching the set temperature, the actual power consumption is significantly reduced due to the high-density insulation structure and variable frequency fan system, with actual consumption generally around 50%–60% of the rated power.

Q5: Does the equipment support non-standard customization?

A: Yes. The equipment can be customized according to:

Factory installation space

Product dimensions

Production capacity requirements

Conveyor method requirements (such as mesh belt conveyor or overhead chain conveyor)

to provide a suitable customized drying solution.
