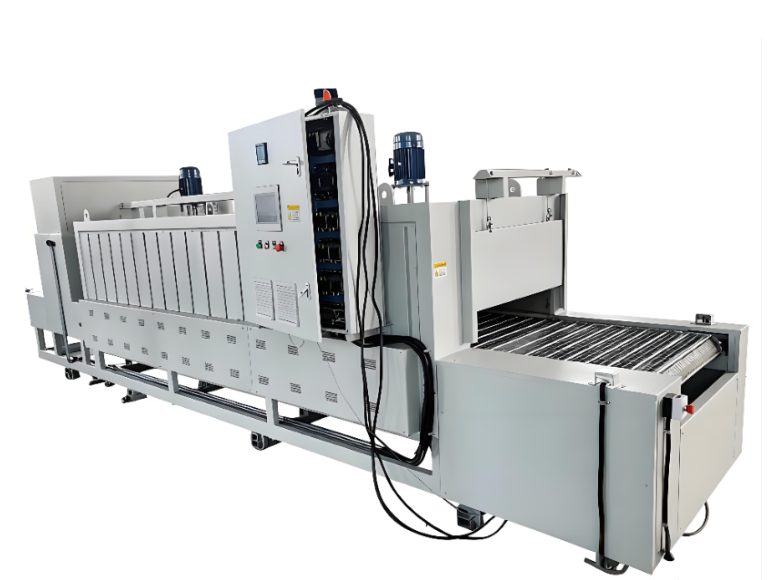

Heat Sink Core Cleaning and Drying Production Line

The Heat Sink Core Cleaning and Drying Production Line is an automated surface treatment system specially designed for automotive radiators, intercoolers, condensers, and industrial heat exchangers.The system integrates multiple processes, including high-pressure spray cleaning, ultrasonic cleaning, multi-stage rinsing, air knife water removal, and high-efficiency drying, achieving fully automated continuous operation.It effectively removes oil stains, metal debris, dust, and residual moisture from heat sink cores, improving surface cleanliness and preparing products for subsequent processes such as brazing, coating, or assembly.

Product Applications

1. Oil and Grease Removal

Used to thoroughly remove:

Stamping oil residues from manufacturing processes

Cutting fluids

Industrial grease and contaminants

2. Impurity Cleaning

Used for removing:

Metal chips inside fins and tubes

Dust

Various particles and processing residues

3. Surface Drying

Used to rapidly evaporate:

Surface moisture

Water accumulated inside gaps and fin structures

Preventing oxidation and rusting of core components.

4. Pre-Treatment Before Coating

Improves the surface cleanliness of heat sink cores and prepares products for:

Brazing processes

Spray coating processes

Surface protection treatments

Product Parameters

Product Features

1. High-Efficiency Cleaning Performance

The system combines high-pressure spray cleaning with multi-directional oscillating mechanisms, allowing cleaning fluid to penetrate deep into blind holes and fin gaps for thorough contamination removal.

2. Energy Saving and Environmental Protection

The cleaning solution is recycled through:

Multi-stage filtration system

Oil-water separation system

Exhaust treatment system

reducing water consumption and improving environmental performance.

3. Complete Drying Performance

A combination of:

High-volume air knives

Hot air circulation system

effectively removes surface water and residual moisture inside fin channels, ensuring a dry and clean core surface.

4. Intelligent Automatic Control

The entire production line operates automatically and features:

Fault self-diagnosis

Safety alarm system

Intelligent process control

to improve production efficiency and reliability.

FAQ

Q1: What types of heat sink core materials can this production line clean?

A: The system is mainly suitable for various radiators and heat exchanger cores made of:

Aluminum

Copper

Stainless steel

and other commonly used metal materials.

Q2: How does the equipment ensure complete drying inside complex fin structures?

A: The system first uses high-pressure air knives to remove large water droplets from the surface, then applies multi-angle hot air circulation to penetrate the fin gaps and evaporate remaining moisture completely.

Q3: Is the cleaning solution recycled?

A: Yes. The equipment is equipped with:

Multi-stage filtration screens

Oil-water separators

allowing filtered cleaning liquid to be recycled, reducing operating costs and wastewater discharge.

Q4: How many operators are required for the complete production line?

A: The production line features a high degree of automation. Under normal conditions, only one operator for loading and one operator for unloading are required to meet daily production needs.

Q5: Can the equipment dimensions and processing procedures be customized according to factory requirements?

A: Yes. The complete production line can be customized according to:

Product dimensions

Production capacity requirements

Factory layout

to provide a suitable automated cleaning and drying solution.
