Material Drying and Curing Furnace

The Material Drying and Curing Furnace is a high-efficiency industrial thermal processing equipment designed for removing moisture, volatile substances, and promoting chemical reactions such as the curing of coatings, adhesives, and resins.The equipment adopts an advanced temperature control system and hot air circulation technology to ensure uniform temperature distribution inside the furnace. It is widely used in industrial processes including drying, dehydration, heat setting, and high-temperature curing.

Product Applications

1. Surface Treatment

Used for drying and curing after:

Painting

Powder coating

Spray coating processes

2. Electronics and Electrical Industry

Applied for:

Transformer varnish baking

PCB board baking

Adhesive dispensing curing

Electronic component aging tests

3. Plastic and Rubber Industry

Used for:

Drying plastic materials before secondary injection molding

Rubber product vulcanization processes

4. Hardware and Machinery Industry

Used for:

Stress relief annealing of metal components

Moisture removal after cleaning processes

5. Composite Materials Industry

Suitable for:

Heat pressing of carbon fiber materials

Atmospheric pressure curing of resin-based composites

Product Parameters

Product Features

1. Precise Temperature Control

The equipment adopts a microcomputer intelligent temperature control system, providing stable temperature regulation and preventing over-drying or overheating of materials.

2. Uniform Heating Performance

Equipped with a specially designed powerful hot air circulation system, ensuring no dead zones inside the furnace and minimizing temperature differences.

3. Energy Efficient Operation

Uses a high-density aluminum silicate insulation layer to reduce heat loss, significantly improving energy efficiency and reducing operating costs.

4. Safe and Reliable Operation

Equipped with multiple safety protection functions, including:

Over-temperature alarm

Exhaust and smoke discharge system

Phase-loss protection

to ensure safe production.

5. Customized Design Support

The furnace structure can be customized according to material characteristics and production requirements, including:

Trolley-type furnace

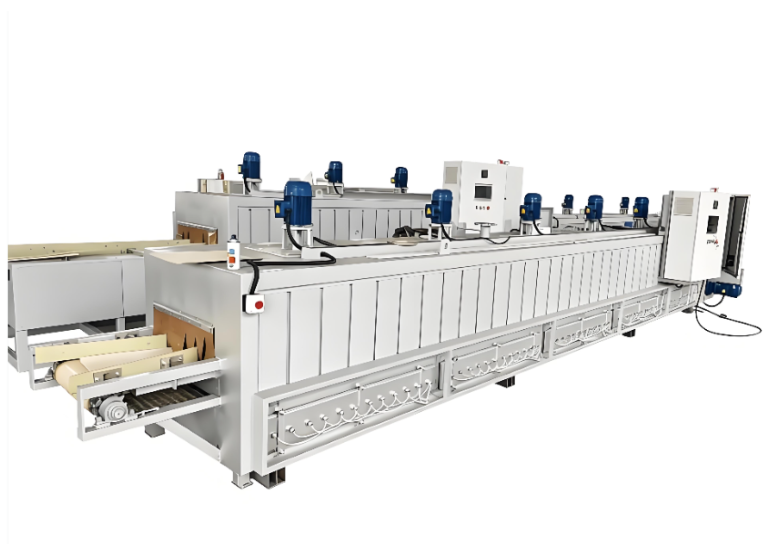

Conveyor mesh belt furnace

Other customized configurations

FAQ

Q1: What is the main difference between a drying furnace and a curing furnace?

A: A drying furnace is mainly used to evaporate moisture or solvents through a physical process. A curing furnace uses high temperature to promote chemical reactions, such as cross-linking reactions, allowing materials to achieve the required strength and performance.

Q2: How should the suitable heating energy source (electricity or gas) be selected?

A:

Electric heating: Provides more precise temperature control and higher cleanliness, making it suitable for small and medium-sized equipment.

Gas heating: Offers lower operating costs and is more suitable for large-scale continuous industrial production.

Q3: How does the equipment achieve high thermal efficiency and energy saving?

A: The furnace uses a thick high-performance insulation layer to retain heat and adopts hot air circulation technology to reuse heated air, reducing energy loss and improving thermal efficiency.

Q4: Why is an exhaust system required during the curing process?

A: During curing, materials may release volatile organic compounds or flammable gases. The exhaust system can quickly remove these gases, ensuring safe operation and improving curing quality.

Q5: Can the furnace be customized according to factory dimensions and material carts?

A: Yes. The following components can be customized according to actual production requirements:

Inner chamber dimensions

Air duct direction

Loading and unloading methods (such as trolley type or rail type)

Production capacity requirements

Factory installation conditions

The equipment can be designed to provide an optimized thermal processing solution.
