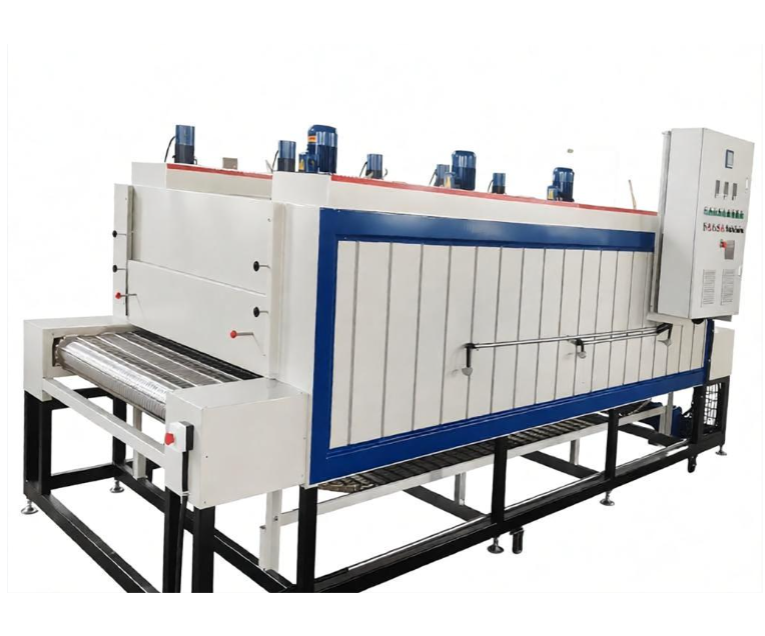

Steel Plate Glue Coating Drying Tunnel Furnace

The Steel Plate Glue Coating Drying Tunnel Furnace is an industrial-grade continuous heat treatment equipment specially designed for solvent evaporation and adhesive curing after steel plate surface coating processes.The equipment adopts a continuous tunnel-type production line structure. Steel plates are continuously conveyed through multiple heating zones by the transmission system, achieving efficient, uniform, and stable drying performance.It is widely used in industries requiring large-scale steel plate coating, bonding, and curing processes.

Product Applications

1. Automotive Manufacturing

Used for adhesive curing of automotive body panels, damping sheets, and other coated steel components.

2. Home Appliance Shell Manufacturing

Used for drying pre-coated steel plates for refrigerators, washing machines, and other household appliance housings.

3. Building Material Processing

Used for adhesive curing of color-coated steel sheets, such as coated roofing panels and decorative metal sheets.

4. Hardware Products

Used for drying after adhesive coating of composite steel plates, metal stamped parts, and various hardware components.

Product Parameters

Product Features

1. Efficient and Uniform Heating

The equipment adopts hot air circulation or infrared radiation heating technology to ensure uniform heat distribution across the steel plate surface and improve adhesive curing quality.

2. Intelligent Temperature Control System

Equipped with a multi-zone independent microcomputer PID control system, enabling precise temperature curve adjustment and stable curing conditions.

3. Efficient and Safe Exhaust System

The furnace is equipped with an independent exhaust system to quickly discharge volatile gases generated during adhesive curing, improving operational safety and reducing fire and explosion risks.

4. Energy-Saving Insulation Design

The furnace adopts a high-density aluminum silicate fiber insulation layer, keeping the outer surface temperature close to ambient temperature and significantly reducing heat loss.

FAQ

Q1: What types of adhesives are suitable for this tunnel furnace?

A: The equipment is suitable for various adhesives used in metal bonding processes, including polyurethane adhesives, epoxy resin adhesives, acrylic adhesives, and various water-based or solvent-based metal coating adhesives.

Q2: How does the equipment ensure the safety of flammable gases generated during adhesive evaporation?

A: The furnace is equipped with a forced exhaust system and gas concentration alarm device. Explosion-proof heating tubes and explosion-proof pressure relief doors can also be installed as optional safety configurations.

Q3: Are there any limitations on the thickness and width of steel plates?

A: The equipment is a customized product. The tunnel width, inlet height, and conveying structure are designed according to the maximum dimensions and production requirements of the customer's steel plates.

Q4: Does the tunnel furnace consume a lot of electricity? Are there energy-saving solutions?

A: The equipment adopts zoned heating control and high-density insulation design to reduce energy consumption. Gas heating or waste heat recovery systems can also be selected to further reduce operating costs.

Q5: Can the conveyor speed be adjusted?

A: Yes. The system adopts variable frequency speed control, allowing operators to freely adjust the steel plate residence time inside the furnace according to adhesive thickness and curing requirements.
