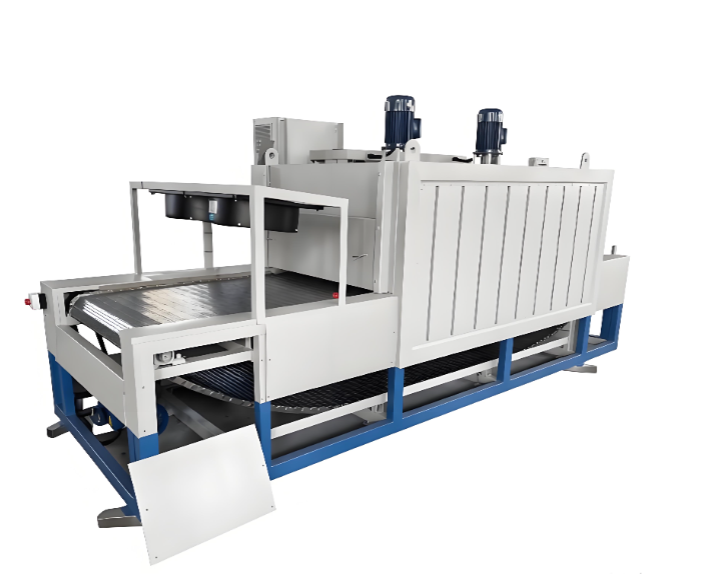

Sealant Curing Tunnel Furnace

The Sealant Curing Tunnel Furnace is a continuous heat treatment equipment specially designed for industrial surface treatment processes. It adopts a tunnel-type structure, where workpieces coated with sealants, such as anti-rust sealants and metal surface protective agents, are continuously conveyed into the furnace chamber through a conveyor system.The equipment uses advanced heating technologies, including far infrared radiation, hot air circulation, or microwave heating, to rapidly dehydrate, cross-link, and cure the sealant under controlled temperature conditions. As a result, a uniform, dense, and protective film is formed on the workpiece surface, improving corrosion resistance and surface protection performance.

Product Applications

1. Metal Surface Corrosion Protection

Used for heating and curing sealant coatings on automotive components, fasteners, and hardware parts to improve salt spray resistance and rust prevention performance.

2. Electroplating and Chemical Post-Treatment

Used for drying and hardening sealant coatings after hardware electroplating and passivation treatments.

3. Electronic Component Protection

Used for continuous curing of protective coatings and sealing adhesives applied to precision electronic components such as chips and circuit boards.

Product Parameters

Note: The following are typical industry parameters. Customized designs are available according to specific process requirements.

Product Features

1. Efficient Continuous Production

The equipment adopts continuous production line operation, completing feeding, heating, curing, and discharging in one continuous process, making it suitable for large-scale industrial production.

2. High Temperature Uniformity

The furnace adopts multi-zone independent temperature control combined with a hot air circulation duct system. The internal temperature difference is minimized, ensuring consistent sealant curing quality.

3. Energy Saving and Environmental Protection

The furnace body uses high-density insulation materials to reduce heat loss. An optional VOCs exhaust filtration system or ventilation system can be installed to improve environmental performance.

4. Intelligent Control System

PLC control combined with a touchscreen interface enables real-time monitoring of temperature curves and provides functions such as over-temperature alarm and fault self-diagnosis.

FAQ

Q1: What heating methods does this tunnel furnace support?

A: The equipment mainly supports electric heating, natural gas heating, and far infrared heating. The most suitable heating method can be selected according to energy costs, production conditions, and environmental requirements.

Q2: How does the equipment ensure complete curing for workpieces of different sizes?

A: The equipment adopts variable frequency speed control and multi-zone independent temperature control. According to the heat absorption characteristics of different workpieces, the conveyor speed and temperature settings of each zone can be precisely adjusted to achieve complete curing.

Q3: How are odors and exhaust gases generated during sealant curing treated?

A: A dedicated exhaust duct is installed at the top of the furnace chamber, which can be directly connected to the factory exhaust treatment system or equipped with an activated carbon filtration device for effective treatment of curing emissions.

Q4: What conveyor belt materials are available?

A: According to the shape and weight of workpieces, different conveyor systems can be selected, including:

Stainless steel mesh belt

High-temperature resistant Teflon mesh belt

Chain conveyor

Roller conveyor

Q5: Does the equipment consume a lot of energy? Are there any energy-saving designs?

A: The equipment is equipped with a high-density insulation layer to reduce heat loss and supports hot air circulation reuse. After reaching the preset temperature, power consumption during the constant-temperature stage is significantly reduced, improving overall energy efficiency.
