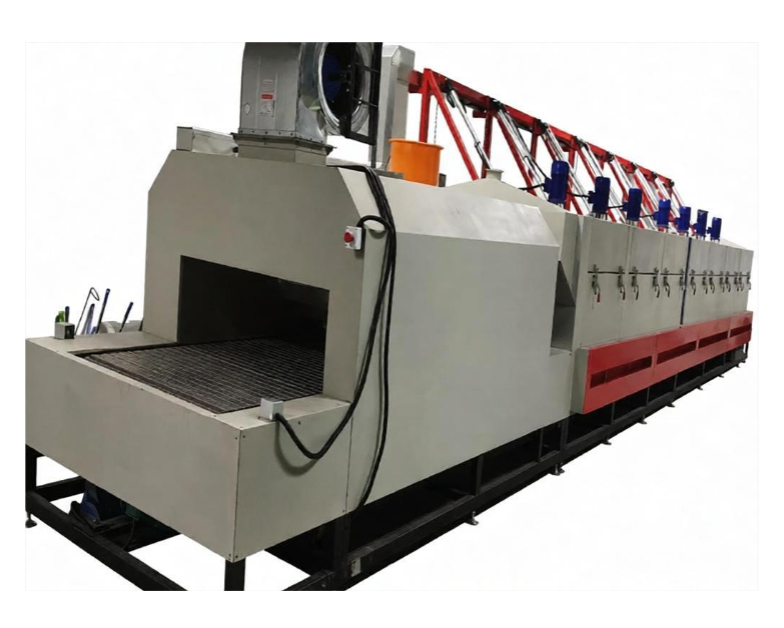

Precision Parts Drying Tunnel Furnace

The Precision Parts Drying Tunnel Furnace is a high-efficiency continuous industrial drying system specially designed for dehydration, drying, and curing processes of high-precision products, including semiconductor components, automotive precision hardware parts, electronic components, and optical lenses.The equipment adopts a continuous tunnel-type production line structure. Parts are continuously conveyed through multiple temperature zones inside the heating tunnel, achieving uninterrupted, uniform, and high-precision temperature-controlled drying.

Product Applications

1. Drying After Hardware Cleaning

Rapidly removes residual moisture from the surfaces of precision stamped parts, machined components, and other metal parts after cleaning processes.

2. Curing of Electronic Components

Used for rapid curing of inks, resins, and adhesives after dispensing, coating, and screen printing processes.

3. Stress Relief and Preheating

Provides a precise thermal treatment environment to eliminate internal stress in materials or perform preheating before assembly.

Product Parameters

Product Features

1. Precise Temperature Control

Adopts a PID microcomputer intelligent temperature control system combined with an air circulation system to achieve extremely uniform temperature distribution inside the furnace.

2. High Cleanliness Level

The interior is mainly constructed with SUS304 stainless steel. Optional Class 100/Class 1000 HEPA high-efficiency filtration systems are available to prevent secondary contamination of precision parts.

3. High Efficiency and Energy Saving

The continuous production line operation, high-efficiency hot air circulation utilization, and optimized thermal design provide high productivity with low energy consumption.

4. Safe and Intelligent Operation

Equipped with multiple protection functions, including over-temperature alarm, conveyor belt deviation protection, foreign object blockage protection, and emergency shutdown system.

FAQ

Q1: How is temperature uniformity inside the tunnel furnace ensured?

A: The equipment uses a multi-zone independent temperature control system combined with high-volume forced hot air circulation (or precise infrared radiation heating) to ensure uniform heating. The local temperature difference inside the furnace can be strictly controlled within ±2–3℃.

Q2: How can the drying time be adjusted for different parts?

A: The equipment is equipped with a variable frequency speed control system. Operators can precisely adjust the conveyor speed through the touchscreen interface to freely shorten or extend the drying time according to different process requirements.

Q3: How does the equipment ensure high cleanliness and prevent dust contamination of precision parts?

A: The furnace chamber adopts a fully welded mirror-finish stainless steel structure. The air duct can be equipped with high-temperature resistant HEPA high-efficiency filters and combined with a clean conveyor system to prevent debris falling and dust generation.

Q4: Does the tunnel furnace consume a lot of electricity? Are there any energy-saving designs?

A: No. The equipment adopts a high-density aluminum silicate fiber insulation layer to reduce heat loss. The hot air circulation system enables heat reuse, achieving more than 30% overall energy savings compared with traditional drying ovens.

Q5: Is the conveyor belt prone to deviation or jamming? How can it be handled?

A: The equipment is equipped with an automatic belt deviation correction system and tension adjustment mechanism as standard. If foreign objects cause blockage, the transmission system will automatically trigger an alarm and stop operation to protect both the parts and the equipment.
