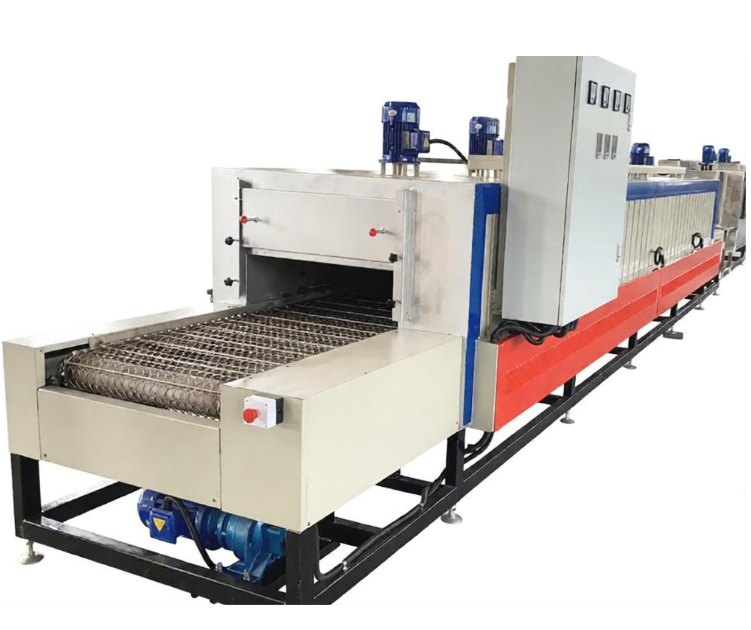

Silicone Rubber Drying Tunnel Oven

The Silicone Rubber Drying Tunnel Oven is a highly efficient continuous industrial drying system specially designed for secondary vulcanization, drying, preheating, and aging testing of silicone rubber products. The equipment adopts a horizontal or vertical hot air circulation system combined with high-precision temperature control technology, ensuring uniform heating of silicone rubber products during continuous conveying.The internal chamber is commonly constructed with stainless steel materials to prevent product contamination and effectively remove volatile substances released during the vulcanization process. It is widely used in silicone rubber processing industries.

Product Applications

Secondary Vulcanization:

Used to remove residual vulcanizing agents and volatile low-molecular compounds from silicone rubber products.

Physical Property Optimization:

Improves the tensile strength, resilience, and hardness stability of silicone rubber products.

Drying and Moisture Removal:

Used for rapid surface moisture drying of cleaned silicone rubber components.

Preheating Treatment:

Provides uniform preheating of silicone rubber substrates before molding or coating processes.

Product Features

Precise Temperature Control:

Adopts PID microcomputer intelligent temperature control technology with temperature accuracy up to ±1℃.

Uniform Hot Air Circulation:

The specially designed airflow system ensures minimal temperature differences throughout the oven chamber.

Stepless Speed Adjustable Conveying:

The variable frequency drive system allows flexible adjustment of conveying speed to meet different baking time requirements.

Environmentally Friendly Exhaust Design:

Equipped with an independent exhaust interface to effectively remove vulcanization odors and waste gases.

High-Efficiency Thermal Insulation:

Uses high-density aluminum silicate fiber cotton insulation, keeping the external surface temperature low and safe to touch.

Product Parameters

FAQ

Q1: Why does silicone rubber require secondary vulcanization drying?

A1:After primary vulcanization, silicone rubber still contains certain residual low-molecular substances and initiators. Secondary vulcanization further improves cross-linking, eliminates product odors, and significantly enhances tensile strength and aging resistance.

Q2: What type of conveyor belt is commonly used for silicone rubber drying?

A2:Stainless steel mesh belts and Teflon mesh belts are commonly used. Stainless steel mesh belts provide excellent high-temperature resistance and long service life, making them suitable for heavier products. Teflon mesh belts have a smooth, non-stick surface, making them ideal for small silicone rubber parts with strict surface quality requirements.

Q3: How are volatile substances and odors generated during drying treated?

A3:The equipment is designed with an independent exhaust duct and powerful exhaust fan on the top of the oven. Volatile gases are collected and discharged through the factory exhaust treatment system for filtration and safe release.

Q4: Can each section of the tunnel oven have independent temperature control?

A4:Yes. The equipment adopts a multi-zone independent temperature control design. Each zone is equipped with an independent heating system, temperature sensor, and control instrument, allowing flexible adjustment of different process parameters.

Q5: How does the equipment ensure uniform temperature during large-scale silicone rubber drying?

A5:The system uses high-efficiency circulation fans installed on both sides, combined with professionally designed side and top air outlets. This creates strong horizontal or vertical airflow circulation inside the tunnel, ensuring uniform heating of products across the entire conveyor surface.
