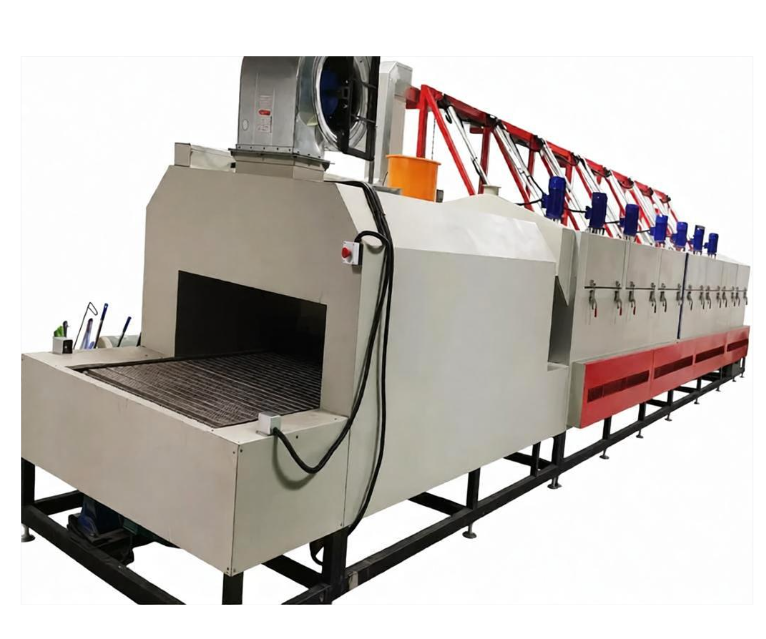

Navigation Module Tunnel Oven

The Navigation Module Tunnel Oven is a continuous industrial heating system specially designed for high-precision soldering, curing, and drying processes of automotive navigation modules, in-vehicle electronics, and GPS positioning modules. The system adopts precise temperature control technology and mesh belt conveying mechanisms to ensure uniform heating of electronic components in a stable temperature environment, significantly improving product yield and production quality.

Product Applications

Chip Soldering:

Used for reflow soldering of PCB boards in navigation modules.

Dispensing Adhesive Curing:

Applied for rapid curing of housing sealants and underfill adhesives.

Component Drying:

Used for moisture removal and drying of electronic components after surface coating processes.

Aging Testing:

Used for continuous high-temperature aging tests before electronic modules are delivered.

Product Parameters

Product Features

Precise Temperature Control:

Equipped with a microcomputer-based intelligent PID control algorithm to achieve accurate and stable temperature regulation.

Uniform Heating:

The specially designed hot air circulation system eliminates cold spots and ensures consistent heating throughout the chamber.

Energy Efficient:

High-quality insulation materials effectively reduce heat loss and improve thermal efficiency.

Stable Operation:

The variable frequency mesh belt conveyor system provides smooth operation with no vibration.

FAQ

Q1: Can the equipment dimensions be customized according to factory space?

A1:Yes. The furnace length and mesh belt width can be customized according to specific production requirements and installation conditions.

Q2: How does the equipment maintain stable temperature during continuous production?

A2:The system achieves stable temperature control through multiple independent heating zones combined with an efficient hot air circulation system.

Q3: Can the mesh belt conveying speed be adjusted?

A3:Yes. The system is equipped with a variable frequency speed controller, allowing flexible adjustment of conveyor speed according to process requirements.

Q4: Does this equipment consume a lot of power? Are there any energy-saving designs?

A4:No. The furnace uses high-density rock wool insulation and an intelligent energy-saving mode to reduce heat loss and lower operating energy consumption.

Q5: What maintenance should be performed during daily operation?

A5:Regular maintenance includes cleaning residual adhesive inside the furnace, checking the transmission chain, and applying high-temperature lubricating oil when required.
