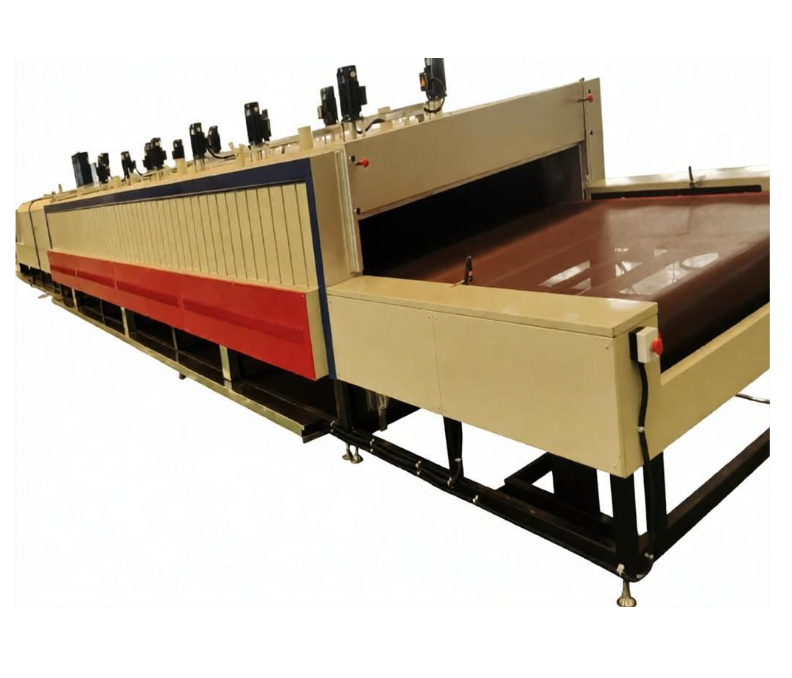

Teflon Mesh Belt Tunnel Furnace

The Teflon mesh belt tunnel furnace is a high-efficiency continuous drying equipment that uses a Teflon (PTFE) mesh belt as the conveying carrier. It is widely used in industrial heating, drying, and dehydration processes.

Product Applications

Textile Printing and Dyeing:

Printing drying

Fabric shrinkage treatment

Nonwoven fabric drying

Food Processing:

Baking

Dehydration

Vegetable drying

Food curing

Electronics and Electrical Appliances:

Circuit board curing

Electronic component adhesive dispensing and drying

Packaging and Printing:

UV ink drying

Screen printing drying

Product Parameters

Product Features

High Temperature Resistance and Non-Stick Performance:

The Teflon mesh belt has excellent high-temperature resistance and prevents materials from sticking easily.

Uniform Heating:

The hot air circulation system ensures a small temperature difference at all positions inside the furnace.

Variable Frequency Speed Regulation:

The conveyor speed operates smoothly and supports wide-range precise adjustment.

High Efficiency and Energy Saving:

High-quality insulation materials reduce heat loss from the furnace body surface, improving energy efficiency.

FAQ

Q1: What is the maximum temperature resistance of the Teflon mesh belt?

A1: The Teflon mesh belt can operate continuously at temperatures up to 260℃ and can withstand an instantaneous maximum temperature of 300℃.

Q2: Is the mesh belt prone to deviation during operation?

A2: No. The equipment is equipped with automatic or manual belt deviation correction devices, which can effectively prevent the mesh belt from running off track.

Q3: Can the temperature be independently controlled in different sections?

A3: Yes. The tunnel furnace is usually divided into multiple temperature zones, and each zone can be independently temperature controlled.

Q4: How should the heating source be selected to achieve better energy saving?

A4: Infrared heating has high heating efficiency. If a natural gas pipeline is available, gas heating can provide lower operating costs.

Q5: Are there any requirements for the shape and size of the materials?

A5: The materials only need to be placed stably on the mesh belt and must not exceed the height of the heating passage.
