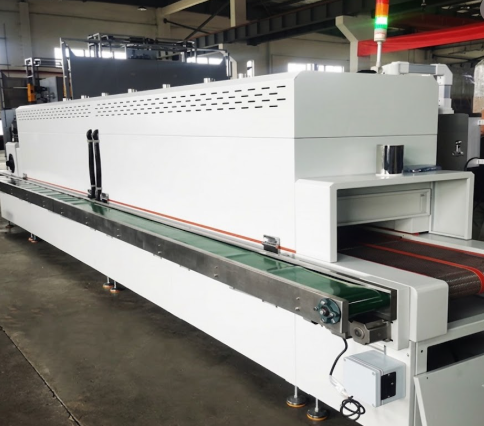

The aging drying tunnel oven is designed for continuous drying and curing processes in printing and packaging industries. It adopts a multi-zone structure with heating and cooling sections, ensuring stable temperature control, uniform heating, and reliable performance for long-time aging processes.
Suitable for screen printing, ink printing, packaging, precision hardware, compressor refrigeration, medical devices, and related industries.
| Item | Specification |
|---|---|
| Overall Dimensions | L6198 × W750 × H1450 mm (±50, excluding external components) |
| Heating Zones | 2 heating zones |
| Cooling Zone | 1 zone |
| Temperature Range | Room temperature to 220°C (adjustable) |
| Temperature Uniformity | ±3°C (no-load, constant temperature) |
| Control Accuracy | ±1°C |
| Heating Rate | 8°C/min |
| Outer Surface Temperature | ≤ Ambient +15°C (except joints) |
| Airflow Method | Forced convection with upper and lower circulation |
| Power Supply | 380V, 3-phase, 50Hz |
| Heating Element | Infrared heating tubes |
| Total Power | Approx. 18 kW |
Two heating zones plus one cooling zone for continuous processing
Infrared heating tubes for fast heat transfer and efficiency
Uniform temperature distribution with strong forced airflow
Precise temperature control with stable performance
Compact structure suitable for small to medium production lines
Low external surface temperature for safer operation
Suitable for long-time aging and drying processes
1. What industries is this oven mainly used for?
It is widely used in printing, packaging, hardware, refrigeration, and medical device industries.
2. What is the maximum temperature?
The oven can operate up to 220°C.
3. How many temperature zones are included?
It has two heating zones and one cooling zone.
4. What type of heating is used?
Infrared heating tubes are used for fast and efficient heating.
5. Is the temperature control precise?
Yes, it offers ±1°C control accuracy and ±3°C uniformity under no-load conditions.
