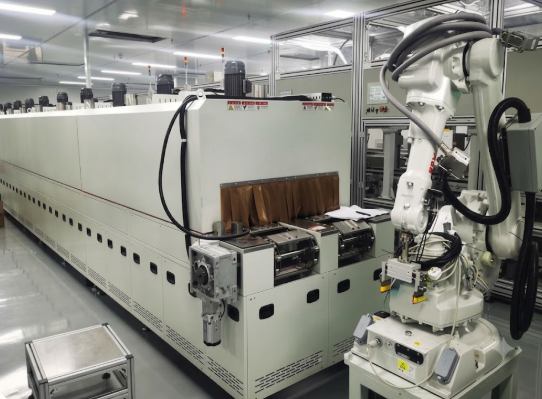

The conveyor curing oven is a customized tunnel-type drying system designed for continuous productio
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The conveyor curing oven is a customized tunnel-type drying system designed for continuous production. It adopts a bidirectional airflow structure and multi-zone independent temperature control, ensuring stable heating and uniform curing performance. The system is equipped with a Mitsubishi HMI and PLC for automated operation and precise process control.
Widely used in industries such as electronics, automotive components, new energy, molds, motors, coils, and stators for drying and curing processes.
| Item | Specification |
|---|---|
| Overall Dimensions | Approx. L12000 × W1250 × H1760 mm |
| Heating Section Length | 11200 mm |
| Inlet Height | 220 mm |
| Inlet Width | 850 mm |
| Infeed / Outfeed Length | 400 mm / 400 mm |
| Temperature Zones | 5 independent zones |
| Temperature Range | Ambient to 150°C |
| Temperature Uniformity | ±5°C (no-load, steady state) |
| Temperature Control Accuracy | ±1°C |
| Heating Rate | 8°C/min |
| Surface Temperature | ≤ Ambient +15°C (excluding joints) |
| Airflow System | Left-right forced airflow |
| Power Supply | 3-phase, 5-wire, 380V, 50Hz |
| Heating Element | 304 stainless steel heaters |
| Total Power | Approx. 50 kW |
| Control System | Mitsubishi HMI + PLC |
Multi-zone independent temperature control
Stable conveyor operation
Uniform heating performance
PLC automated control system
Suitable for continuous production lines
1. Can the temperature be customized for different processes?
Yes, each heating zone can be independently adjusted to meet different curing requirements.
2. Is this oven suitable for continuous operation?
Yes, it is specifically designed for continuous conveyor-based production lines.
3. What industries commonly use this equipment?
It is widely applied in automotive, electronics, motor, and new energy industries.
4. How is temperature consistency ensured?
The oven uses multi-zone control combined with forced airflow to maintain stable and uniform heating.
5. Can the system be integrated into existing production lines?
Yes, the modular design allows easy integration with existing automation systems.
