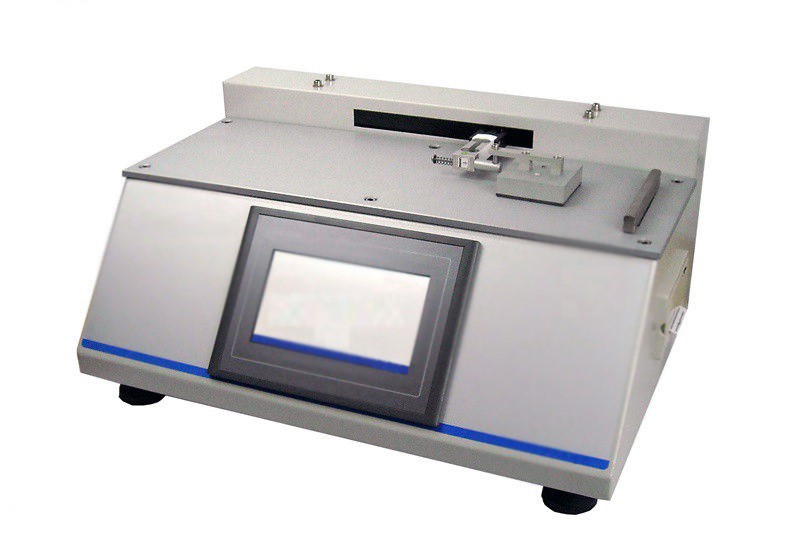

Coefficient Friction Tester

Description:

Coefficient of friction tester is designed and manufactured to measure the static and kinetic coefficient of friction of plastic films, foils, paper, and other materials, which is widely applied to quality control, drug test, R & D, packaging, film, pharmaceutical, cosmetic and other industries.

Standards：

ASTM D1894

ISO 8295

TAPPI T816

Features：

PLC control and touch screen operation

Real time display of test data, results and curves

Both the static and kinetic coefficient of friction can be measured

In accordance with multiple international standards

Test results calculation, analysis and curve superposition

RS232 output and professional software(optional)

Microprint of easy printing of test result

Advantages：

Meets ASTM & TAPPIMeets specifications of ASTM D1894 Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and TAPPI

Method T-549. Coefficients of Static and Kinetic Friction of Uncoated Writing and Printing Paper by use of the Horizontal Plane Method.

Advanced Technical Features：

Fixed sled speed of 6 inches per minute.Plus sled speed settings of1. 2.5 and 10 ipm for peel and seal testing

Cutting templates available to reduce sample preparation times

Can be run in Digital/Manual mode or Digital/Software mode

Calibration tools available for in-house system calibration

Heated platen available as an option for elevated temperature sample conditioning and testing

Parameters:

Measuring Range：0~5N

Resolution：0.001N

Slider Journey：70 mm, 150mm (1-320mm can preset non-standard).

Slider Weight：200g, 500g (any non-standard weight preset)

Slider Test Velocity：100mm/min、150mm/min (1-1200mm/min can preset non-standard).

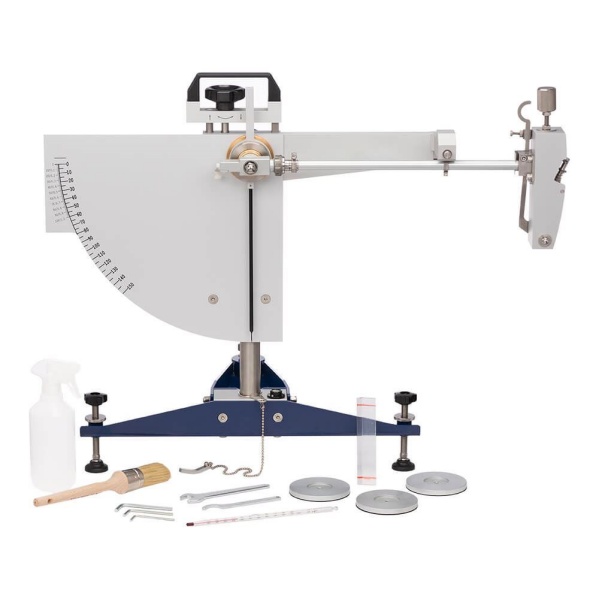

Similar products：Pendulum friction tester
