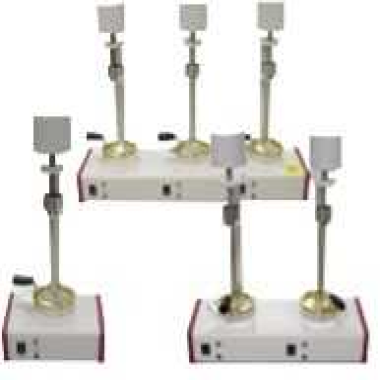

fiber oil extractor/oil extraction apparatus

The rapid extraction of oil and oil is specially used to quickly obtain the oil content of the top a

Content

The rapid extraction of oil and oil is specially used to quickly obtain the oil content of the top and similar materials. Through the container penetration and evaporation, it can detect the grease and oil content of wool and synthetic fiber samples.

You can optionally use the 1, 2 or 3 extraction head device.

Application

It’s used to detect the grease and oil content for fiber, yarn, fabric and so on.

Technical Parameters

Items	Parameters
Temperature range	Room temperature to 250℃
Way of pressure	Increase weights
Timer range	1-9999min
Temperature control accuracy	±1℃
Number of samplers	3
Dimension	100L×155W×350H (mm)
Extraction solvent	Petroleum ether, ether, dichloromethane
Weight	4.4kg（9.7lb）
Power supply	AC220V, 720W
Power Output	175 W

Fiber Oil Extractor
