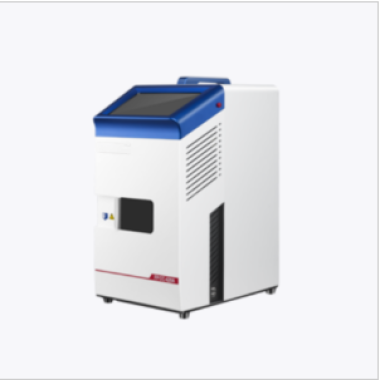

Micro Rapid Closed Cup Flash Point Tester(Pensky Martens)

Automatic Flash Point Tester designed for accurate and repeatable determination of the flash point of petroleum products using the Pensky-Martens closed cup method, fully compliant with ASTM D93.

The flash point of a material is the lowest temperature at which it emits enough vapor to ignite in air in the presence of an ignition source. It is a critical parameter for determining the flammability and safety classification of fuels, oils, solvents, and other volatile substances.

Applications

(1)Petroleum & Petrochemical Industry – Testing fuels, base oils, lubricants

(2)Paints & Coatings – Verifying solvent flash points

(3)Pharmaceuticals & Chemicals – Assessing flammability characteristics

(4)Transport & Safety Compliance – Ensuring materials meet regulatory flash point requirements

(5)Environmental & Quality Labs – Standardized material classification

Standards

(1)SN/T 3077.1-2012: Chemicals—Determination of flash point—Part 1: Closed-cup equilibrium method

(2)SN/T 3077.2-2012: Chemicals—Determination of flash point—Part 2: Closed-cup rapid equilibrium method

(3)SH/T 0768-2005: Determination of total contaminants in middle distillate fuel oils—High-temperature filtration method

(4)DL/T 1354-2014: Preparation method of working standard oil for analysis of dissolved gas components in transformer oil

(5)ASTM D93: Pensker-Martins closed-cup flash point determination

(6)ASTM D6450: Small closed-cup flash point determination method

(7)ASTM D3828: Small closed-cup device method for determining the flash point of liquids

(8)ASTM D7094: Improved continuous closed-cup flash point determination method

(9)ASTM D7236: Improved Abel closed-cup flash point determination method

(10)ASTM D56: Tiger closed-cup flash point determination method

(11)ISO 2719: Petroleum products—Determination of flash point—Pensker- Martins Closed Cup Method

(12)ISO 13736: Petroleum Products - Determination of Flash Point - Abel Closed Cup Method

(13)ISO 1516: Petroleum Products - Determination of Flash Point - Tiger Closed Cup Method

(14)ISO 1523: Petroleum Products - Determination of Flash Point - Small Closed Cup Method

(15)IP 34: Determination of Flash Point - Abel Closed Cup Tester Method

(16)IP 304: Determination of Flash Point - Small Closed Cup Method

(17)IP 170: Determination of Flash Point - Pensker-Martins Closed Cup Tester Method

(18)DIN EN 22719: Petroleum Products - Determination of Flash Point - Pensker-Martins Closed Cup Method

(19)JIS K2265: Petroleum Products - Determination of Flash Point

(20)NF M 07-019: Petroleum Products - Determination of Flash Point - Pensker-Martins Closed Cup Method

Features

(1)It adopts the advanced continuous closed - cup flash - point test method, which is more accurate and efficient.

(2)It requires a small sample amount, resulting in low test costs and minimal pollution.

(3)With continuous closed - cup operation, there is no open flame, ensuring high safety.

(4) It has a built - in refrigeration module, offering a wide flash - point test range and a fast cooling rate.

(5)Standard test methods are preset and can be associated with other closed - cup methods.

(6)It features fully automated detection and automatically corrects the flash - point based on atmospheric pressure.

(7) It displays temperature and pressure curves in real - time, making the test process more intuitive.

(8)The test results include a temperature - pressure rise curve, providing more information about flash combustion.

(9) Key components are from well - known international brands, ensuring long - term stable operation.

(10) It supports user - level management, enabling the management and control of accounts at different levels.

(11)The USB interface is plug - and - play. An optional thermal printer is available for convenient data management.

(12)It is equipped with a 7 - inch color touch screen that supports Chinese input, making the operation intuitive and simple.

Technical Parameters

Accessoriess

(1) Binsky-Martin Closed Cup Kit (includes a dedicated cup body and sealing cap, suitable for closed cup testing requirements)

(2)Micro-sample pipette (matches the instrument's micro-sample volume injection requirements)

(3)Spare ignition needle/igniter assembly (a spare part to ensure stable ignition function)

(4) Sealing ring for closed cup (a consumable sealing component for closed cup testing)

(5)Spare temperature sensor probe (a core spare part for temperature detection)

(6)Standard flash point sample for calibration (a known flash point standard oil compatible with ASTM D93, used for instrument calibration)

(7)Dedicated cleaning tools (such as brushes and wiping cloths, for cleaning and maintenance of components such as the cup body)

Test Procedures

(1)Procedure A: For fuels and liquids with flash points between 40°C and 360°C

(2)Procedure B: For materials with potential surface films or those prone to forming skin

(3)Procedure C: For biodiesel blends and other specified fuel mixtures

Maintenance Information

(1)Routine Inspection: Check the condition of the ignition system, thermocouples, and cup assembly before each test to ensure proper operation.

(2)Cleaning: After each measurement, clean the test cup, lid, and surrounding components to prevent residue buildup and contamination.

(3)Calibration and Safety Checks: Periodically verify the temperature sensor and ignition timing accuracy, and ensure all safety interlocks are functional.

FAQ

1. What is the Micro Rapid Closed Cup Flash Point Tester used for?

It is used to determine the flash point of liquids, indicating flammability and fire hazard levels for safety and regulatory compliance.

2. Which types of liquids can be tested?

The tester can analyze petroleum products, fuels, lubricants, and other flammable liquids according to Pensky-Martens standards.

3. How does the tester work?

The liquid sample is heated in a closed cup while an ignition source intermittently tests for vapor ignition, recording the temperature at which a flash occurs.

4. What safety features are included?

It includes thermal cutoffs, ignition system interlocks, and protective shields to prevent accidents during testing.

5. How should the tester be maintained?

Maintenance involves cleaning the cup and lid after each test, checking thermocouples and ignition components, and periodically calibrating the temperature sensors to ensure accurate results.

Similar product recommendations:

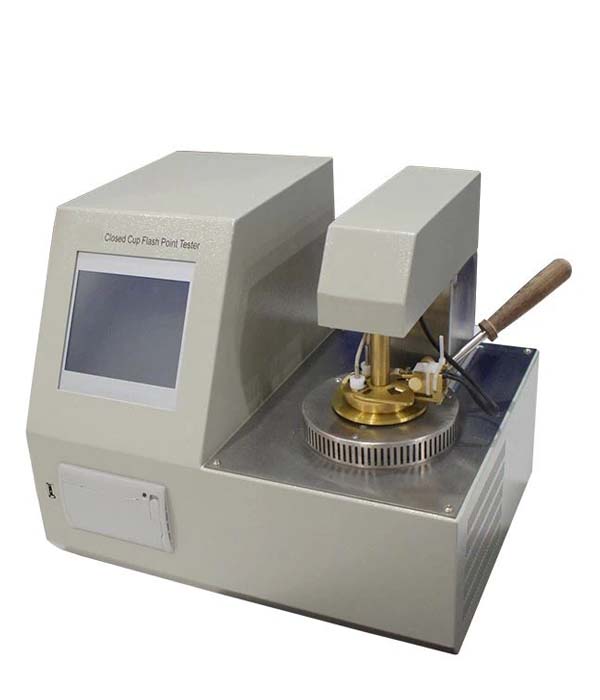

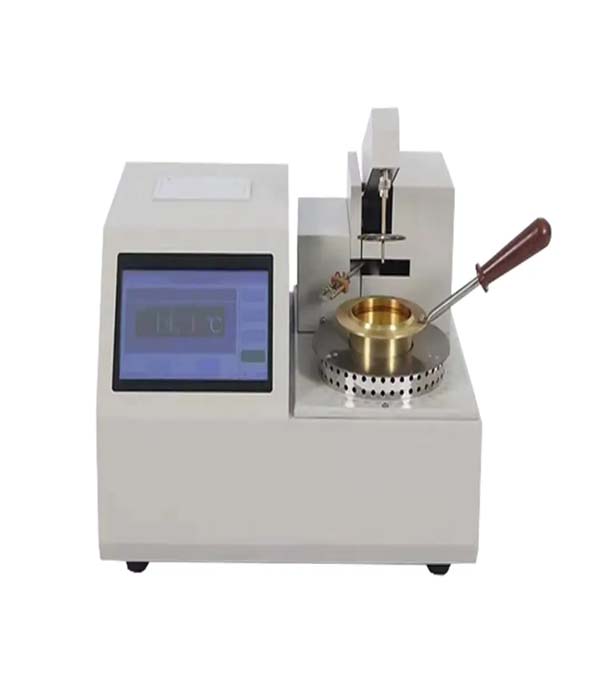

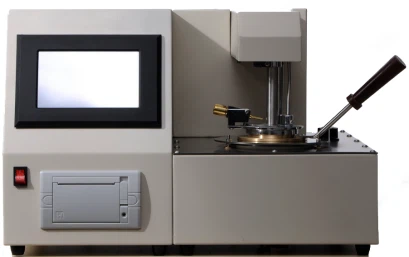

1、Pensky-Martens Closed Cup Flash Tester

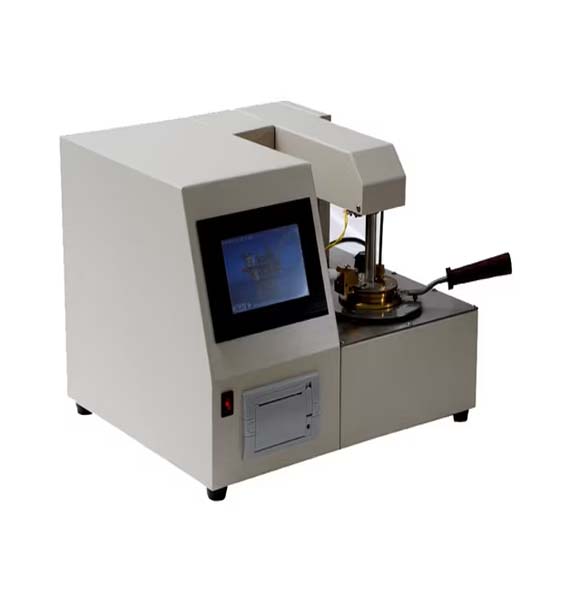

2、Cleveland Open Cup Flash Point Tester
