Mattress Spring Fatigue Tester

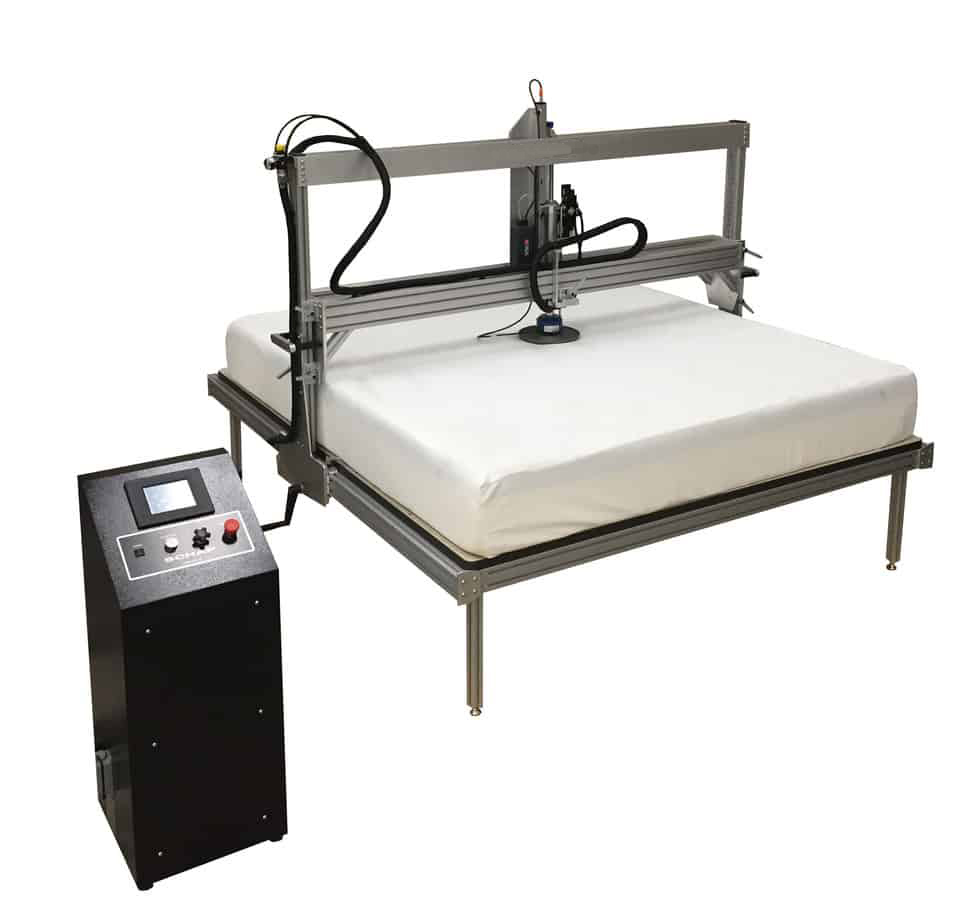

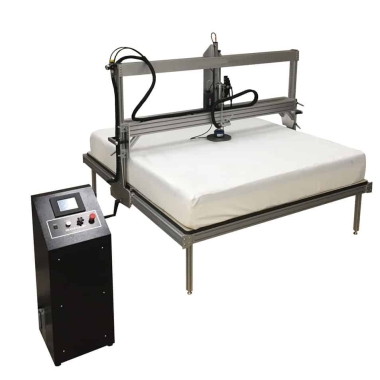

The King Size Foam Fatigue Tester is a single-station pneumatic fatigue testing system designed for evaluating the long-term durability, compression resistance, and structural stability of full-size foam mattresses. The tester accommodates standard King and California King mattress sizes and applies controlled cyclic loading to simulate repetitive human use over an extended service life. The system supports both constant force and constant displacement loading modes and is suitable for laboratory-based durability evaluation and standard compliance testing.

Application

The King Size Foam Fatigue Tester is used for fatigue and durability evaluation of the following products:

Full foam mattresses (polyurethane foam, memory foam)

Latex mattresses

Hybrid mattresses (foam combined with spring or latex layers)

Mattress core foam blocks and assembled mattress systems

Large-size cushioning foam products

Mattress prototypes during product development

Production quality control and type testing of mattresses

Standards

The King Size Foam Fatigue Tester complies with or references the following standards:

ASTM D3574 – Dynamic Fatigue Test by Constant Force Pounding

ISO 2439 – Determination of indentation hardness and deflection

GB/T 26706 – General Technical Requirements for Mattresses (related clauses reference)

Parameters

Features

Large test platform suitable for King and California King mattresses

Dual testing modes supporting constant force and constant displacement fatigue tests

Pneumatic loading system designed for high-cycle durability testing

Fatigue-rated load cell ensuring stable and repeatable dynamic load measurement

Manual X–Y gantry system allowing fatigue testing at any mattress location

Adjustable four-corner sample retainers for secure mattress positioning

High-frequency operation up to 70 cycles per minute to improve test efficiency

Touchscreen PLC control system for parameter setting, monitoring, and test control

Modular design supporting optional indenter sizes, stroke lengths, and load cell capacities

Accessories

Circular indenter, 250 mm diameter (ASTM D3574 compliant)

Pneumatic loading cylinder and air regulation components

Fatigue-rated load cell

Manual X–Y positioning gantry

Adjustable mattress corner retainers

PLC controller with touchscreen display

Compressed air connection components

Test Procedures

Place the mattress flat on the test platform

Adjust the four corner retainers to secure the mattress position

Select constant force or constant displacement test mode

Set test frequency, load or displacement value, and cycle count

Position the indenter using the X–Y gantry to the target test area

Start the fatigue test and allow the system to operate automatically

The system stops automatically upon reaching the preset cycle count

Remove the mattress after the indenter returns to the home position

FAQ

1. What is this product?

This product is a pneumatic fatigue testing machine used to evaluate the durability and compression resistance of full-size foam mattresses under repeated cyclic loading.

2. What is this product used for?

It is used to simulate long-term mattress use and assess foam fatigue behavior, structural stability, and performance degradation.

3. Why is this product important?

The tester provides controlled and repeatable fatigue loading conditions that support product quality verification, design validation, and standard compliance.

4. What industries is this product suitable for?

It is suitable for mattress manufacturers, foam producers, furniture manufacturers, research laboratories, and third-party testing institutions.

5. What types of this product are available?

The system is available with constant force or constant displacement modes, with optional configurations for load cell capacity, stroke length, and indenter type.
