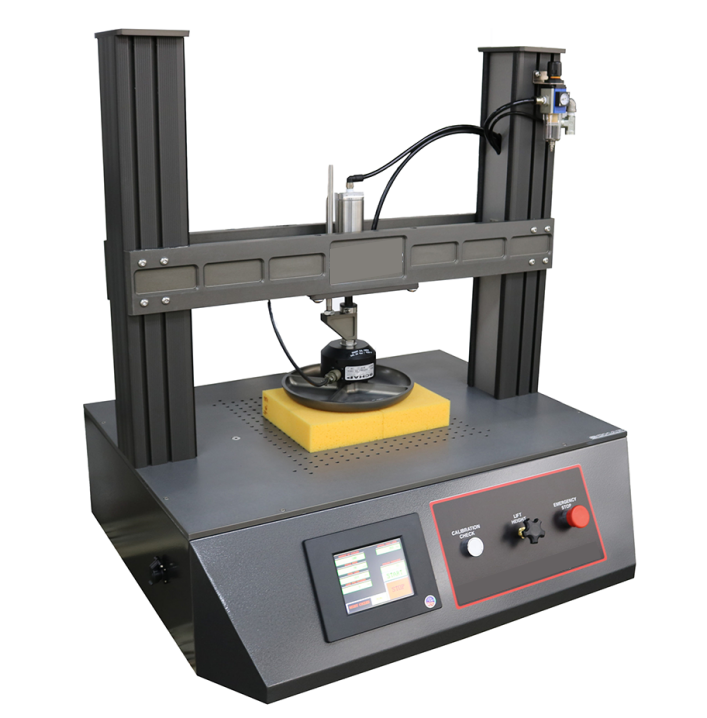

Foam Fatigue Tester

The Foam Fatigue Testing Machine is a single-station pneumatically driven testing machine. In its standard configuration, it applies a constant load cyclically; a constant displacement mode is also available as an option.

Standards:

This testing machine meets the requirements of ASTM D 3574-03. "Constant Force Impact Dynamic Fatigue Testing."

Features:

1. A PLC-based controller with a color touchscreen display works in conjunction with a 500-pound force sensor and signal conditioner, providing a constant cycle rate of 70 cycles per minute and a proven peak force of 750 Newtons (other sizes, rates, and peak forces are available upon request). The machine compresses foam onto a vented grid beneath the foam specimen. This machine is designed for standard square foam specimens.

2. A variety of indenters are available, but the standard indenter meets the requirements of ASTM D3574.

3. It also offers a gantry-style installation, capable of detecting any location on a mattress (or other large foam surface), suitable for sizes ranging from single to king-size beds.

Technical Specifications:

• Air Consumption

Uses a single-rod cylinder with a 6-inch bore x 4-inch stroke:

2-inch sample thickness: 22 CFM (6 hp continuous operation)

4-inch sample thickness: 29 CFM (8 hp continuous operation)

70 cycles/minute

500 lb load cell

15-inch total sample height

28-inch sample width

24-inch sample depth

Uses workshop compressed air – 90 PSI

Footage area – 29 inches x 34 inches x 36 inches

Voltage – 120 volts or 240 volts

ASTM hole spacing – 15 inches x 15 inches

Anodized aluminum

Intuitive touchscreen

Load or displacement adjustment
