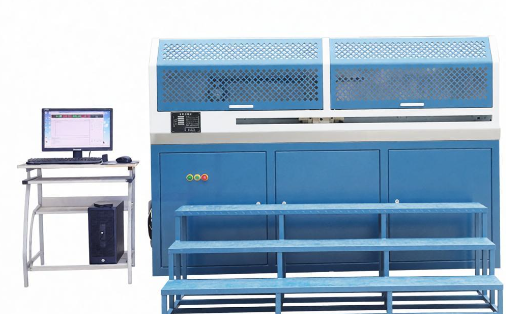

The Computer-Controlled Torsion Testing Machine is mainly used for torsional mechanical property tes
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The Computer-Controlled Torsion Testing Machine is mainly used for torsional mechanical property testing of metal and non-metal materials, automotive components, agricultural machinery components, finished products, semi-finished products, and raw materials. The 200–10000 N·m series is suitable for testing applications in metrology and quality inspection, metallurgy, aerospace, nuclear and military industries, automotive, construction materials, and agricultural machinery.
(1) Metal and non-metal materials
(2) Automotive components
(3) Agricultural machinery components
(4) Raw materials
(5) Finished products
(6) Semi-finished products
(7) Torsional mechanical property testing
GB/T 2611 — General Technical Requirements for Testing Machines
| Parameter | Specification |
|---|---|
| Maximum Torque | 200 / 500 / 1000 / 2000 / 5000 / 10000 N·m |
| Testing Machine Grade | Grade 0.5 / Grade 1 |
| Torque Measurement Range | 1% FS–100% FS |
| Torque Resolution | 1/±300000 |
| Torque Loading Direction | Forward and reverse |
| Torsion Speed | 0.1–720°/min, customizable |
| Torque Resolution | 0.001–0.01 N·m |
| Angular Measurement Range | 0–±99999° |
| Test Stroke | 300–600 mm, customizable |
| Indication Repeatability Error | <0.5% |
| Torque Indication Relative Error | <±0.5% / <±1% |
| Angular Indication Relative Error | <±0.5% |
| Torsion Fixture | Customizable |
| Power Supply | 220 V, 50 Hz |
| Equipment Weight | Approx. 80 kg |
| Appearance | Complies with GB/T 2611 |
| Completeness | Complies with relevant standard requirements |
| Protection | Overload protection |
(1) Computer-Controlled Testing – The testing process is controlled and monitored by computer.
(2) Wide Application – Suitable for materials, automotive components, agricultural machinery components, and various finished and semi-finished products.
(3) Data Processing – Supports test data acquisition and processing for torsional performance evaluation.
(4) Customizable Configuration – Fixtures and related configurations can be customized according to different specimens.
(5) Bidirectional Testing – Supports torsional testing in both directions.
(6) Overload Protection – Provides protection during testing to help prevent equipment damage.
