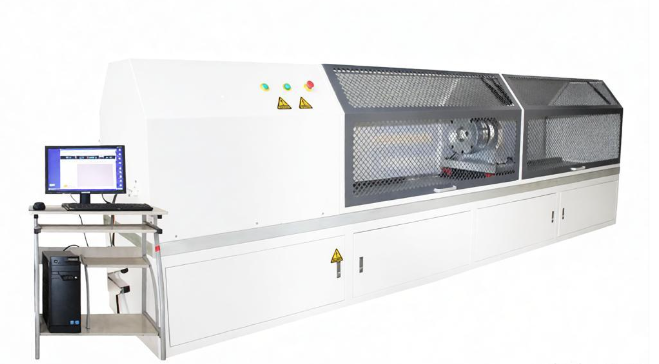

The 10000Nm–100000Nm Fully Automatic Torque Testing Machine is a horizontal torque testing machine mainly used for torque testing of various metal materials, non-metallic materials, components, finished products, and semi-finished products. It can generate detailed A4 test curves, while test reports can be stored, copied, and edited.
Metal materials
Non-metallic materials
Mechanical components
Finished products
Semi-finished products
Torque strength and torsional performance testing
GB/T 2611 — General Technical Requirements for Testing Machines
| Parameter | Specification |
|---|---|
| Maximum Torque | 10000, 20000, 50000, 100000 Nm |
| Testing Machine Class | 0.5 / 1 |
| Torque Measurement Range | 1%FS–100%FS |
| Torque Resolution | 0.001–0.01 N·m |
| Torque Loading Direction | Forward and reverse |
| Torque Speed Range | 0.1°–720°/min, customizable |
| Torque Resolution | 1/±300000 |
| Angular Measurement Range | 0°–±99999.99° |
| Test Stroke | 300–500 mm, customizable |
| Indication Repeatability Error | <0.5% |
| Torque Indication Relative Error | <±0.5% / <±1% |
| Angular Indication Relative Error | <±0.5% |
| Loading Method | Fully automatic |
| Torque Fixture | Three-jaw chuck, customizable |
| Power Supply | 220 V, 50 Hz |
| Equipment Weight | Approx. 200 kg |
| Appearance | Complies with GB/T 2611 |
| Completeness | Complies with applicable requirements |
| Protection | Overload protection |
Horizontal structure suitable for high-torque testing.
Computer-controlled automatic testing and data acquisition.
Test curves can be generated and analyzed for different test requirements.
Test reports can be stored, copied, and edited.
Fixture configuration can be customized according to the specimen.
Suitable for high-torque testing of different components and products.
