AATCC Viewing BoardStandards:American Association of Textile Chemists and Colorist (AATCC) approved
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

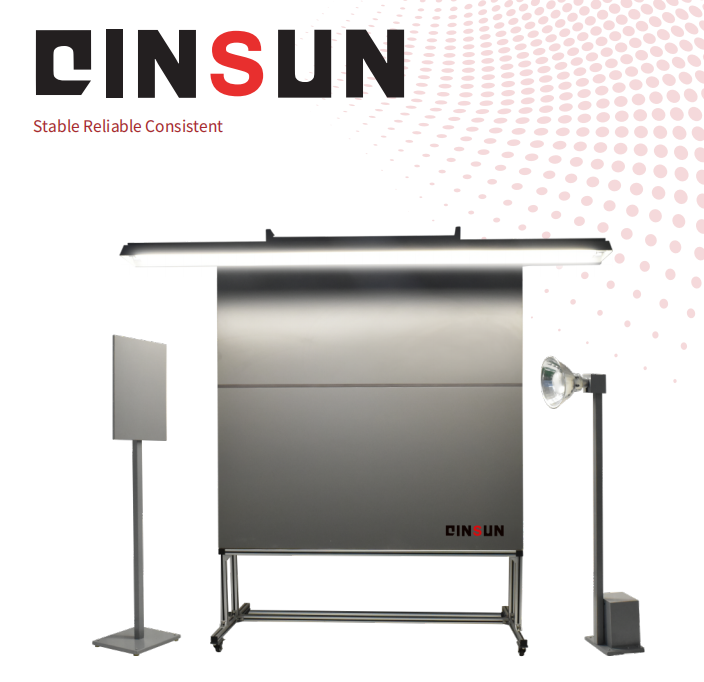

The AATCC Viewing Board is a laboratory instrument designed to evaluate the visual appearance of textile and apparel samples under standardized conditions. It provides controlled lighting and observation surfaces to assess wrinkling, smoothness, seam marks, oil stains, and other surface defects. By comparing samples against standard reference charts, this board enables accurate grading in accordance with AATCC evaluation standards.
ISO 7768: Durable Fabric Surface Evaluation After Washing
ISO 7769: Wrinkle Assessment Post-Household Washing
ISO 7770: Fabric Joint Flatness Evaluation
AATCC 88B/88C: Seam Smoothness & Pleat Retention After Washing
AATCC 124: Fabric Surface Appearance Post-Repeated Washing
Textile Mills: Assesses surface defects, wrinkles, and seam smoothness post-washing.
Garment Manufacturers: Inspects finished apparel for oil stains, creases, and blemishes.
Quality Control Labs: Validates compliance with AATCC and ISO appearance standards.
Retail & Brand Inspection: Ensures product aesthetics meet consumer expectations.
Standardized Lighting: Dual 40W cold-white fluorescent lamps ensure consistent color assessment.
Magnetic Sample Fixation: Quick-release magnets secure fabrics without slippage.
Portable Design: Casters enable easy relocation for multi-station use.
Ergonomic Viewing: 5° angled board and 1.5m height reduce operator fatigue.
Global Compliance: Meets AATCC, ISO, and IWS standards for textile inspection.
Durable Construction: White enamel shade and heavy-duty frame withstand daily use.
Dual Lighting System: 2.4m (8ft) cold-white fluorescent tubes with rapid preheating.
AATCC Gray Scale Visor: Level 2 gray (matt) visor for accurate stain/blemish grading.
Adjustable Floodlights: 500W panlights with 1.5m ground clearance for directional illumination.
Magnetic Fixation: Samples are held in place without clamps or adhesives.
Mobile Base: Casters allow movement across labs or production lines.
Non-Reflective Surface: White enamel observation board minimizes glare.
| Parameter | Specification |
|---|---|
| Test Mode | Manual (Visual Inspection) |
| Light Source | 2 × Cold White Preheating Fluorescent Lamps (40W each) |
| Tube Length | 2.4 m (8 ft) |
| Floodlight Power | 500W (Adjustable) |
| Visor Color | AATCC Level 2 Gray (Matt) |
| Visor Size | 600 mm × 400 mm × 12 mm |
| Observation Board Angle | 5° (Ergonomic Tilt) |
| Board Color | ISO/AATCC Level 2 Gray Scale |
| Power Supply | AC 220V ±10%, 50Hz |
| Dimensions (L×W×H) | 254 cm × 70 cm × 255 cm |
| Net Weight | 180 kg |
| Casters | 4 × Lockable Wheels (360° Rotation) |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
