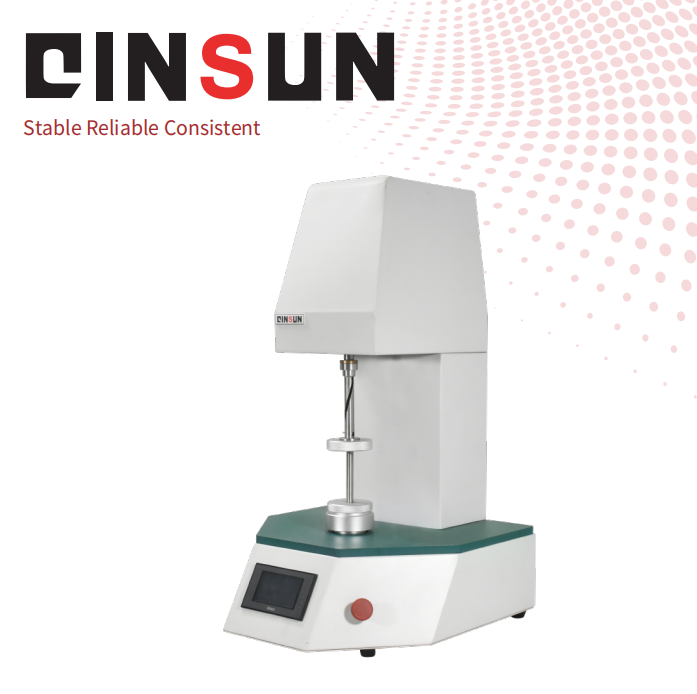

Automatic Wrinkle Recovery Tester

Automatic Wrinkle Recovery Tester for Precision Textile Analysis.

WhatsApp : +86 15601902607

Email : info@qinsun-lab.com

Content

The main principle of the wrinkle recovery tester is to apply a predetermined pressure to the specimen under standard atmospheric conditions and to maintain the specified time. The overall structure of the instrument and the precise spiral column ensure that the loaded specimens produce a uniform deformation. After removing the sample from the instrument, re-adjust the sample under standard atmospheric conditions and allow it to recover for a certain period of time, and then compare the sample with the reference sample to assess the appearance of the sample.

The instrument consists of a base with a bracket, the base of the fixed steel plate and the top of the movable steel plate to match ,the activities of the flange with the locking pin. Equipped with four standard weights, respectively, 2000g, 1000g, 500kg, 200kg.

Application

The wrinkle recovery test instrument detects the recovery of the specimen after a certain period of time under a load. It is suitable for any fiber pure or blended fabric test. Besides, it can not maintain the shape of stable materials under the characteristics of the conditions, such as the material which is soft, thin and easy to bend. We can evaluate its anti-crease performance through this device.

Standards:

AATCC 128 Wrinkle recovery of fabrics: Appearance method
ISO 9867 Textiles - Evaluation of the wrinkle recovery of fabrics - Appearance method
ENKA 306 International standard that specifies the methodology for evaluating the wrinkle recovery performance of textiles, particularly for fabrics prone to deformation under pressure

Accessories:

(1)First ,use the pressure sample device, three samples are tested continuously. The interval is about 1min;
(2)Fold the sample face to face. Cloth edge clip with a clip, not more than 5mm;
(3)In some cases the sample surface will be stained together. We should use a piece of paper or aluminum foil whose size is 18x14mm. Be careful not to contact the sample by hand;
(4)Place the folded sample between the two briquettes and apply the weight immediately. Turn on the chronograph and wait 60 + 2 seconds. Prepare the next sample according to 2,3,4 steps.
(5)After 5 minutes, remove the first piece of weight quickly and easily. Transfer the folded sample with the clip to the sample rack of the measuring instrument;
(6)Remove the paper or aluminum foil. Place one side of the sample in the sample holder and the other side is the free hanging. After 60 +2 seconds, Put the second and third pieces of samples into the sample folder;
(7)Adjust the instrument so that the hanging end of the sample is consistent with the vertical mark of the instrument, within 5min should be constantly adjusted (so that the hanging end of the sample is consistent with the vertical mark of the instrument,) to avoid the impact of gravity;
(8)After 5 minutes, record the recovery angle of the sample. If the sagging side is slightly curled or twisted to pass through the vertical plane of the center of the droop and the axis of the dial as a reference for the crease return angle reading;
(9)Repeat the above steps, and then do three negative fold of the sample and the zonal frontal fold and the opposite fold (a total of 12).

Technical Parameters

Items	Parameters
Sample size	15cm×28cm(6×11inch)
Weights	2000g，1000g，500kg，200kg Accumulate
Dimensions	150×150×330mm(L×W×H)
Weight	9.5kg(21lb)

FAQs

What is the AATCC 128 Wrinkle Recovery test?

After forcefully inducing wrinkles, the AATCC 128 wrinkle recovery test evaluates the fabric’s physical appearance.

How to perform AATCC 128 Wrinkle Recovery?

In this test, the fabric specimen is placed under a predetermined load for 20 minutes in standard atmospheric conditions. It is then conditioned for 24 hours, and its physical appearance is rated according to a 3-dimensional standard.

Why is wrinkle prevention important in textiles?

This property gives the fabric an aesthetic, fresh, smooth look and facilitates care. The fabric’s wrinkle recovery property makes it easy for customers not to iron it repeatedly.

Which Factors Affect AATCC 128 Wrinkle Recovery?

Fabric smoothness restoration depends upon yarn type, count, fabric construction, fabric blend ratio, cloth thickness, mechanical stress applied, and finishing treatments.

What is the load range used in fabric performance drape tester?

The fabric performance drape tester has weight loads of 0.5 Kilogram, 1.0 Kilogram, and 2.0 Kg. The instrument’s overall capacity is 3.5 Kilograms, so the load pressure must be applied according to the required standard. Place two standard weights at each testing station.

What is the procedure for AATCC 128 Wrinkle Recovery testing?

The specimens are wrapped around the tester’s head with the front face outward. After the test is started, press the start button. The instrument’s upper head moves downward to the lower head, meets, and presses the fabric specimen for 20 minutes.

How AATCC 128 samples are rated?

After 20 minutes, the upper head is lifted, and the specimen is gently removed without removing the wrinkles. Then, the specimen’s physical appearance is measured with a wrinkle recovery replica and given a rating from 1 to 5.
