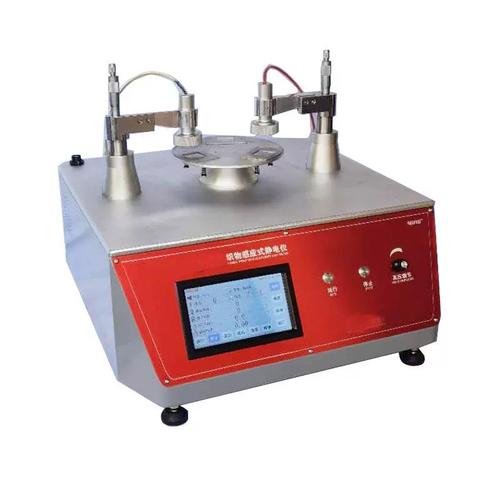

G342 Fabric induction static electrical meter

The Fabrics Induction Type Electrostatic Tester host consists of a corona discharge device and a probe detector.Using a given high-voltage electric field, the fabric is discharged for a certain time, causing the fabric to induce static electricity, thereby performing electrostatic energy measurement, half-life of static voltage decay, and electrostatic residual amount to detect the electrostatic charging property of the fabric to be tested.

The seriousness of the charging of the fabric depends on the level of the static voltage after high-voltage discharge and on the other hand. The rate of static escaping on the fabric is expressed by the electrostatic half-life, which is an important indicator for testing the electrostatic properties of the fabric.

Application

This Fabric Induction Electrostatic Tester is suitable for the determination of the electrostatic properties of fibers, yarns, fabrics, carpets, upholstery fabrics and other fabrics or various plate-shaped finished product under laboratory conditions.

Standards

The instrument complies with multiple international and national standards:

(1) FZ/T 01042 – Fabric electrostatic property testing

(2) GB/T 12703.1 – Textile static measurement

(3) GB/T 33730 – Determination of electrostatic characteristics

(4) ISO 18080-1 – Textile electrostatic measurement

Parameters

Features

You can operate the instrument via a large color touchscreen with Chinese/English interface.

High-voltage circuit ensures linear adjustment from 0 to 10,000 V with enclosed safety module.

Measures static voltage decay (1%–99%) using timing or fixed-pressure methods.

Digital display shows instantaneous peak voltage, half-life, residual voltage, and decay time.

Stable and precise, suitable for laboratory testing and R&D applications.

Accessories

(1) 1 × Sample Disk

(2) 1 × High-Voltage Needle Electrode

(3) 1 × Probe Detector

(4) 1 × Power Cable

(5) 1 × User Manual

Optional:

(6) Calibration Kit

(7) Computer Interface Module

Maintenance Information

Keep electrodes and sample disk clean to ensure measurement accuracy.

Inspect high-voltage module regularly for wear or damage.

Avoid exposing electronic components to moisture.

Perform periodic calibration using certified electrostatic reference standards.

Conclusion

The G342 Fabric Induction Static Electrical Meter provides reliable, precise measurement of fabric electrostatic properties. You can use it to ensure material safety, compliance with standards, and support research and quality control in textiles, carpets, and upholstery.

FAQ

(1) What is this product?

It is a tester for measuring fabric electrostatic properties using a high-voltage induction method.

(2) What is this product used for?

It evaluates static voltage, decay rate, and residual static on fabrics to determine material performance.

(3) How does this product work?

The instrument induces static electricity using a high-voltage field and measures its decay and residual charge.

(4) Why is this product important?

It ensures fabrics meet safety, performance, and electrostatic control requirements.

(5) Which industries is this product suitable for?

Textile manufacturing, carpet production, upholstery, automotive interiors, and laboratory research.
