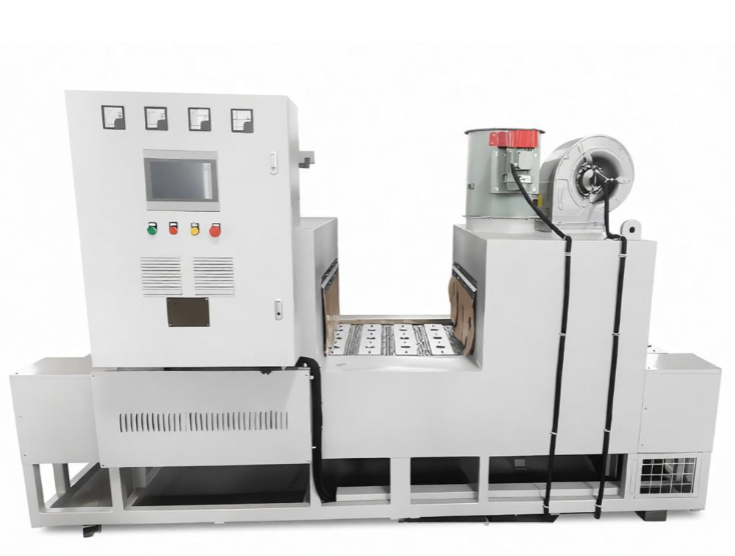

Glue Drying Tunnel Furnace

The Glue Drying Tunnel Furnace is an industrial thermal processing equipment that uses a continuous conveyor system to efficiently heat, cure, and dry products after glue application.Through continuous conveying, precise temperature control, and uniform heating technology, the equipment enables stable and efficient curing of various adhesive materials. It is widely used in automated production lines requiring high efficiency, consistent quality, and continuous operation.

Product Applications

1. Electronics and Electrical Industry

Used for:

PCB board potting adhesive curing

Chip red glue curing

Mobile phone screen adhesive curing

2. Automotive Components

Used for:

Automotive lamp adhesive curing

Sealing strip bonding

Motor coil insulation paint drying

3. Optical Components

Used for drying and curing adhesives in:

Camera modules

Optical lenses

UV or thermal curing adhesive applications

4. Footwear, Bags and Leather Products

Used for:

Shoe sole bonding adhesive drying

Leather edge sealing adhesive curing

Fast drying of bonding materials

5. Hardware and Mechanical Manufacturing

Used for:

Metal component bonding

Magnetic material adhesive curing

Industrial assembly adhesive drying

Product Features

1. High-Efficiency Continuous Operation

The conveyor-type production process eliminates waiting time associated with batch baking and significantly improves production efficiency.

2. Precise Temperature Control

Equipped with microcomputer PID temperature control technology and multiple independent heating zones, ensuring accurate temperature regulation and minimal temperature deviation.

3. Uniform Heating Performance

The hot air circulation system ensures even heat distribution throughout the furnace, avoiding dead zones and improving adhesive curing consistency.

4. Energy Saving and Environmental Protection

The equipment adopts a high-density insulation layer to reduce heat loss and is equipped with an exhaust outlet for removing volatile gases generated during curing.

5. Variable Speed Adjustment

The conveyor system adopts frequency converter or DC speed regulation technology, allowing flexible adjustment of conveying speed according to different adhesive curing times.

Product Parameters

FAQ

Q1: What types of adhesives are suitable for this tunnel furnace?

A: The equipment is suitable for various adhesives, including:

Thermal curing adhesives

Epoxy resin adhesives

Red glue

Silicone adhesives

Water-based adhesives

For pure UV adhesives, a customized UV curing tunnel furnace is required.

Q2: How can the drying time for different products be controlled?

A: The residence time of products inside the furnace can be adjusted by controlling the conveyor speed through the variable frequency speed controller. Combined with independent temperature settings for each heating zone, the optimal curing process can be achieved.

Q3: Is the surface temperature of the equipment high during operation? How is safety ensured?

A: No. The equipment body uses high-efficiency rock wool insulation, keeping the external surface temperature close to room temperature. It is also equipped with:

Over-temperature alarm system

Automatic power-off protection system

to ensure safe operation.

Q4: Does the tunnel furnace consume a lot of electricity? Are there energy-saving designs?

A: The actual operating power consumption is much lower than the rated power. After reaching the preset temperature, the equipment mainly maintains temperature through hot air circulation, and the heating elements operate intermittently, reducing energy consumption.

Q5: Do you provide customized services? What information is required?

A: Yes. The equipment supports comprehensive customization according to production requirements.

Customers need to provide:

Product dimensions

Adhesive curing requirements (temperature and time)

Factory space limitations

The furnace size, heating method, conveyor system, and temperature zones can be customized accordingly.
