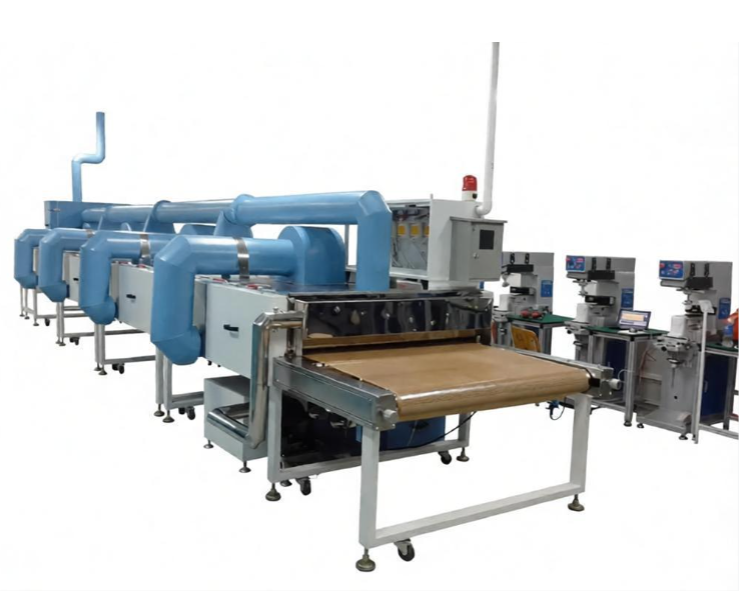

Ink Teflon Mesh Belt Tunnel Furnace

The Ink Teflon Mesh Belt Tunnel Furnace is a high-efficiency continuous industrial drying equipment. It uses a high-temperature resistant and non-stick Teflon (PTFE) mesh belt as the conveying carrier, combined with infrared heating, hot air circulation, or UV curing technology, and is specially designed for the drying and curing of inks after printing and coating processes.

Product Applications

Screen Printing:

Used for drying various inks used in nameplates, membrane switches, and textile screen printing applications.

Label Printing:

Used for rapid curing of inks on self-adhesive labels and roll paper printing materials.

Electronic Manufacturing:

Used for baking and curing PCB solder masks (green oil), insulating inks, and coatings on electronic components.

Packaging Printing:

Used for drying varnishes and inks on the surfaces of paper boxes, plastic packaging, and other printed materials.

Product Parameters

Product Features

Non-Stick and High Temperature Resistance:

The Teflon mesh belt offers excellent temperature resistance, prevents ink adhesion, and is easy to clean and maintain.

Uniform Drying Performance:

The hot air circulation system combined with precise temperature control ensures consistent heating and drying quality of products.

Variable Frequency Speed Control:

The conveyor speed can be smoothly adjusted to accommodate different ink types and curing requirements.

Energy Efficient Operation:

High-quality insulation materials reduce heat loss, improve thermal efficiency, and lower production costs.

FAQ

Q1: What types of inks can this tunnel furnace dry?

A:It is suitable for water-based inks, solvent-based inks, and various types of varnishes. Models equipped with UV lamps can also cure UV inks.

Q2: What is the typical service life of the Teflon mesh belt?

A:Under normal operating conditions at the rated temperature (around 200℃), the mesh belt typically has a service life of 1 to 2 years. It is a replaceable consumable component.

Q3: Will the mesh belt deviate during operation?

A:The equipment is equipped with automatic or manual belt deviation adjustment devices, which effectively prevent the mesh belt from shifting left or right during operation.

Q4: What is the temperature control accuracy inside the furnace?

A:The equipment adopts an intelligent PID temperature controller, achieving furnace temperature control accuracy of ±1℃ to ±2℃.

Q5: What is the power consumption of the equipment? Can it be customized if the workshop power capacity is insufficient?

A:The equipment power depends on the furnace size and required working temperature, generally ranging from several kilowatts to dozens of kilowatts. The heating tube configuration can be optimized according to the available electrical capacity of the workshop to provide a customized solution.
