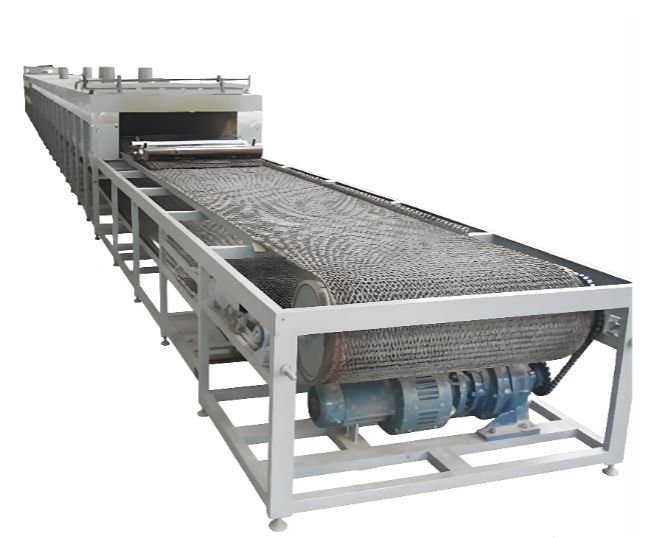

Ceramic Decorative Stainless Steel Tunnel Furnace

Ceramic Decorative Stainless Steel Tunnel Furnace is an industrial-grade thermal processing equipment that uses continuous mesh belt or roller conveyor transmission to perform high-temperature baking and curing of surface decorative coatings on ceramic products, daily-use ceramics, architectural ceramics, and other materials, including glaze colors, overglaze decoration, gold edging, decal transfers, and other decorative finishes.The furnace body is made of high-quality stainless steel, featuring excellent corrosion resistance, easy cleaning, high thermal efficiency, and long service life.

Product Applications

Ceramic Decal Firing:

Used for curing decal papers and painted patterns on ceramic surfaces.

Glaze Firing:

Used for secondary firing of low-temperature glaze or decorative glaze coatings.

Gold Decoration Curing:

Used for baking and curing gold and silver decorative processes on ceramic surfaces.

Glass Decoration:

Also suitable for surface painting, decoration, and baking processes of glassware.

Product Parameters

Product Features

Precise Temperature Control:

Multiple heating zones with independent temperature control, maintaining temperature difference within ±1℃.

Energy Saving and Environmental Protection:

Equipped with high-quality thickened insulation cotton and a well-sealed structure, significantly reducing heat loss and improving energy efficiency.

Stable Conveyor Operation:

Variable frequency stepless speed regulation ensures smooth operation and prevents material jamming.

Durable Structure:

The entire furnace adopts a stainless steel exterior and inner chamber, providing excellent corrosion resistance, rust prevention, and long service life.

FAQ

Q1: What is the maximum working temperature of this tunnel furnace?

A:The equipment is generally designed with a rated working temperature of 850℃, which can meet the requirements of most ceramic surface decoration and decal firing processes.

Q2: How does the furnace ensure temperature uniformity inside the chamber?

A:The furnace adopts multi-zone independent PID temperature control, combined with an optional hot air circulation system, to ensure excellent temperature uniformity and minimize temperature differences at different points inside the furnace.

Q3: Can the mesh belt running speed be adjusted?

A:Yes. The conveyor system adopts variable frequency stepless speed regulation, allowing users to adjust the conveying speed according to different product baking times.

Q4: What are the installation requirements for this equipment?

A:The equipment requires a flat installation surface, sufficient heat dissipation space, and a three-phase power supply connection that meets the total power requirements of the equipment.

Q5: Does this tunnel furnace have high power consumption?

A:No. The equipment uses multi-layer high-density insulation materials to reduce heat loss. After reaching the preset temperature, the heating system operates intermittently, providing significant energy-saving performance.
