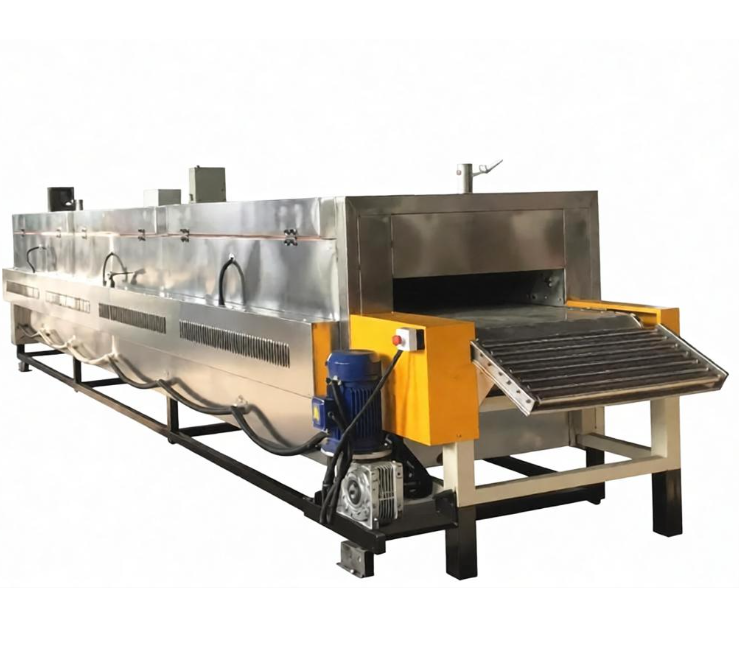

Precision Electronic Product Chain Plate Tunnel Furnace

The Precision Electronic Product Chain Plate Tunnel Furnace is a high-efficiency, continuous industrial heat treatment system. It uses stainless steel chain plates as the conveying carrier and relies on a high-precision temperature control system combined with an optimized hot air circulation structure, allowing electronic products to continuously pass through the heating zones according to the preset temperature profile. This equipment is specially designed for drying, curing, aging, and sintering processes of electronic components, semiconductor discrete devices, automotive electronics, and other precision products. It features excellent temperature uniformity and high-level automated production capability.

Product Applications

Adhesive Curing:

Used for rapid curing after adhesive dispensing on electronic product housings, screens, PCB assemblies, and components of smartphones, smart wearable devices, and other products.

Component Drying:

Used to remove residual moisture or solvents from precision components such as capacitors, resistors, integrated circuits, and other electronic parts during manufacturing.

Chip Packaging:

Applied in thermal curing processes after semiconductor chip mounting and epoxy resin encapsulation (Underfill).

Component Aging:

Used for high-temperature thermal stress aging tests on PCBA boards or finished products to screen out early-failure components.

Product Parameters

Product Features

Precise Temperature Control:

Adopts PID microcomputer intelligent temperature control technology combined with SSR solid-state relay output, ensuring stable temperature curves and accurate process control.

Chain Plate Conveying System:

Provides smooth transmission, strong load-bearing capacity, and eliminates common problems of traditional mesh belts such as deviation and deformation. It is ideal for precision product handling.

Hot Air Circulation System:

Features a specially designed air circulation structure with multi-point airflow distribution inside the furnace, ensuring highly uniform heating on product surfaces.

Energy Saving and Environmental Protection:

Filled with high-density premium insulation materials, keeping the external surface temperature close to ambient temperature and effectively reducing heat loss.

Intelligent Safety Protection:

Equipped with multiple safety protection systems, including over-temperature alarm, conveyor overload protection, phase failure protection, and other safety functions.

FAQ

Q1: How does the equipment prevent precision electronic products from being damaged by excessive temperature?

A1: The equipment adopts high-precision PID microcomputer temperature control and multi-zone independent temperature control design, combined with an over-temperature power-off protection system. If any heating zone exceeds the preset safety temperature, the system will automatically cut off the heating power and activate an audible and visual alarm.

Q2: Will the chain plate material contaminate or scratch electronic products?

A2: No. The conveyor system uses high-quality industrial-grade SUS304 stainless steel chain plates with finely polished surfaces, providing a smooth and flat conveying surface. For highly sensitive products, customized solutions such as non-metallic conveyor plates (e.g., PTFE) or special chain plates with fixtures are also available.

Q3: How is temperature uniformity inside the furnace ensured?

A3: The furnace is equipped with high-performance, high-volume circulation fans. Through specially designed air guide channels on both sides or the top, hot air circulates strongly inside the furnace, evenly surrounding the products and controlling local temperature differences within ±2.5℃.

Q4: Can the conveyor speed and temperature be adjusted according to different product processes?

A4: Yes. The equipment is equipped with a variable frequency speed control system and an intelligent touch screen. Operators can digitally adjust the conveyor speed and independently set the temperature curve of each heating section according to process requirements.

Q5: What is the difference between a chain plate tunnel furnace and a conventional mesh belt tunnel furnace?

A5: Mesh belt tunnel furnaces are suitable for lightweight and regularly shaped products. Chain plate tunnel furnaces provide stronger load-bearing capacity and more stable operation, eliminating common issues such as mesh belt deviation, loosening, and vibration. They are more suitable for transporting precision electronic components with carriers or fixtures.
