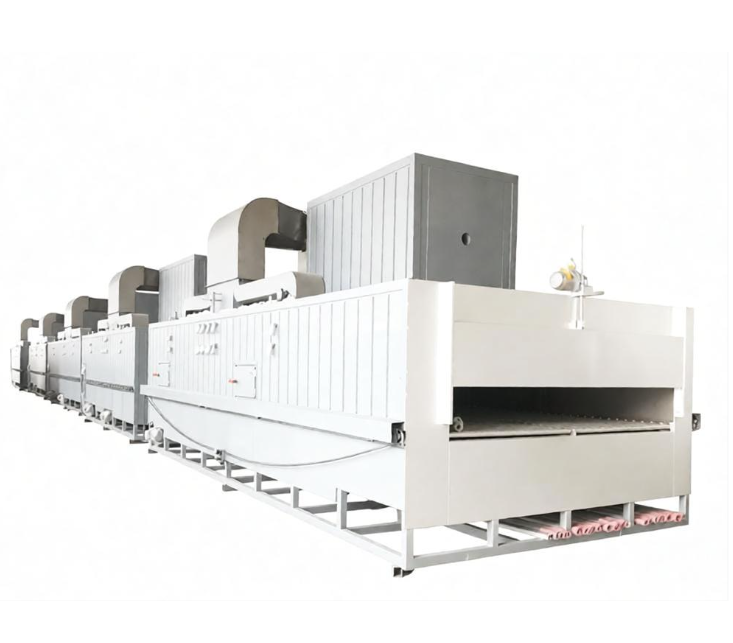

Solar Panel Material Drying Tunnel Oven

The Solar Panel Material Drying Tunnel Oven is a continuous hot air circulation drying system with multiple independent temperature control zones. It is specially designed for the continuous production of solar photovoltaic panels, solar thermal collector plates, and related composite materials. The equipment efficiently removes surface moisture from coatings or cures adhesives on panels, ensuring stable product quality and high production efficiency.

Product Applications

Photovoltaic Panel Curing:

Used for rapid drying and curing of encapsulation adhesives, backsheet coatings, and related processes in solar cell modules.

Coating Drying:

Used for rapid drying of selective absorption coatings on solar thermal collector surfaces.

Composite Panel Moisture Removal:

Applied for deep moisture removal of advanced solar building materials such as BIPV composite panels.

Product Parameters

Product Features

Uniform Heating:

Adopts a dual-air-channel high-strength convection circulation design to ensure consistent heat distribution throughout the drying chamber.

Intelligent Temperature Control:

Equipped with microcomputer control modules and full-width heating components for precise and stable temperature regulation.

Energy Efficient:

Uses high-density aluminum silicate fiber insulation layers to effectively reduce heat loss and improve thermal efficiency.

Stable and Durable Operation:

Equipped with Teflon or stainless steel mesh belt conveying systems for reliable long-term operation.

FAQ

Q1: Can the drying speed of the tunnel oven be adjusted?

A1:Yes. The equipment adopts a variable frequency speed control system, allowing flexible adjustment of mesh belt running speed according to different process requirements.

Q2: How does the equipment ensure uniform heating during the drying process?

A2:The system uses multiple independent temperature zones combined with an efficient air circulation system to maintain minimal temperature differences at different positions inside the oven.

Q3: Does this equipment consume a lot of power? What energy-saving designs are included?

A3:The equipment adopts hot air circulation recovery technology and thickened insulation layers to retain heat inside the chamber. Compared with traditional drying ovens, it can reduce energy consumption by more than 30%.

Q4: Can the equipment be customized in size or integrated with existing production lines?

A4:Yes. The inlet width, tunnel length, mesh belt material, and automation interfaces can all be customized according to specific production requirements.

Q5: What maintenance should be performed during daily operation?

A5:Regular maintenance includes cleaning the filter mesh, checking conveyor belt tension, and keeping heating tubes and fan bearings clean and properly lubricated.
