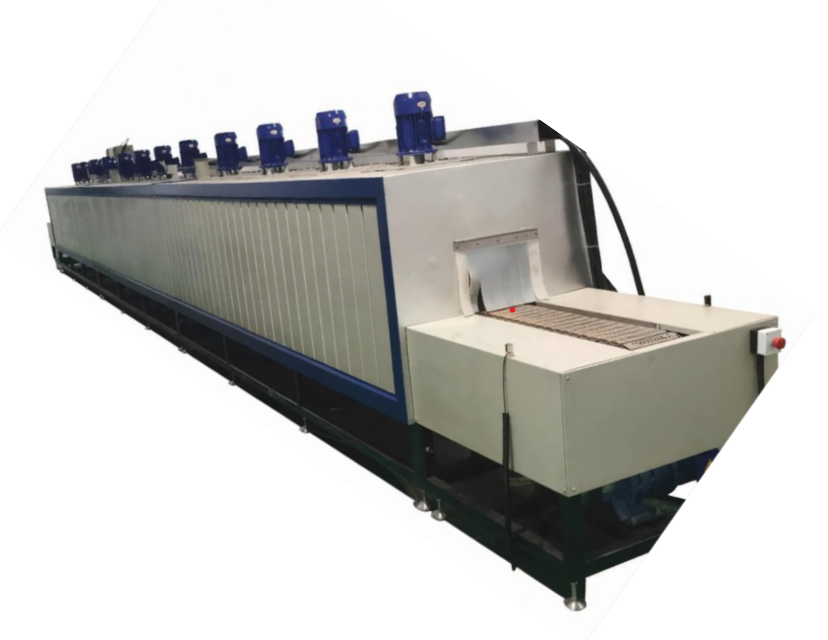

Automotive Parts Preheating and Curing Tunnel Oven

The Automotive Parts Preheating and Curing Tunnel Oven is an industrial-grade continuous thermal processing system designed for automotive component manufacturing.It adopts a tunnel structure and uses conveyor belts, overhead hanging chains, or step-by-step conveying mechanisms to continuously transport automotive parts, such as motor stators, lamps, brake pads, and sensors, through the heating chamber.The equipment integrates automatic temperature control, high-efficiency hot air circulation, and exhaust systems to achieve rapid preheating and precise curing of automotive components.

Applications

Adhesive and Coating Curing

High-speed curing of automotive lamp structural adhesives.

Curing of potting adhesives for automotive electronic components.

Hardening of adhesives used in high-voltage wire harness assemblies.

Insulating Paint Drying

Preheating and drying after impregnation of stators and rotors for new energy vehicle drive motors.

Painting and Surface Treatment

Drying and curing of surface coatings on automotive interior and exterior parts.

Coating curing for brake pads after spraying processes.

Thermal Assembly Preheating

Preheating of metal housings or gears before heat-shrink fitting and thermal assembly processes.

Technical Parameters

Product Features

Continuous and Efficient Production

The automatic loading and unloading conveyor system perfectly matches the high-speed production requirements of automotive component manufacturing lines.

Precise Temperature Control

Adopts multi-zone independent PID temperature control combined with powerful hot air circulation to ensure highly uniform heating of products.

Energy Saving and Environmental Protection

The equipment uses high-density rock wool insulation combined with exhaust heat recovery technology, significantly reducing heat loss and operating energy consumption.

Intelligent Control System

Equipped with PLC and touchscreen control systems, supporting process curve storage, fault self-diagnosis, and MES system integration for intelligent production management.

FAQ

Q1: What heating energy sources are available for this tunnel oven?

A:The equipment supports electric heating, natural gas, liquefied petroleum gas (LPG), and infrared (IR) heating. The heating method can be customized according to the factory energy conditions and operating cost requirements.

Q2: How does the equipment ensure uniform heating for different automotive components?

A:The tunnel oven adopts multiple independent temperature control zones combined with specially designed top or side hot air circulation ducts. This ensures stable airflow distribution and keeps the temperature difference inside the furnace within ±3℃.

Q3: Can the furnace length and conveyor width be adjusted according to an existing factory layout?

A:Yes. All equipment is customized according to customer requirements. The design can be optimized based on factory space, product dimensions, and required hourly production capacity.

Q4: How does the equipment meet automotive industry traceability requirements?

A:The control system can be equipped with data communication interfaces to record and export heating temperature curves and processing time data for each batch of components. It supports seamless integration with factory MES systems for production traceability.

Q5: How is operational safety ensured during tunnel oven operation?

A:The equipment is equipped with multiple safety protection functions, including over-temperature alarm and power cutoff, fan fault interlock protection, conveyor overload protection, and anti-pinch safety light curtains at the inlet and outlet areas to ensure operator and equipment safety.
