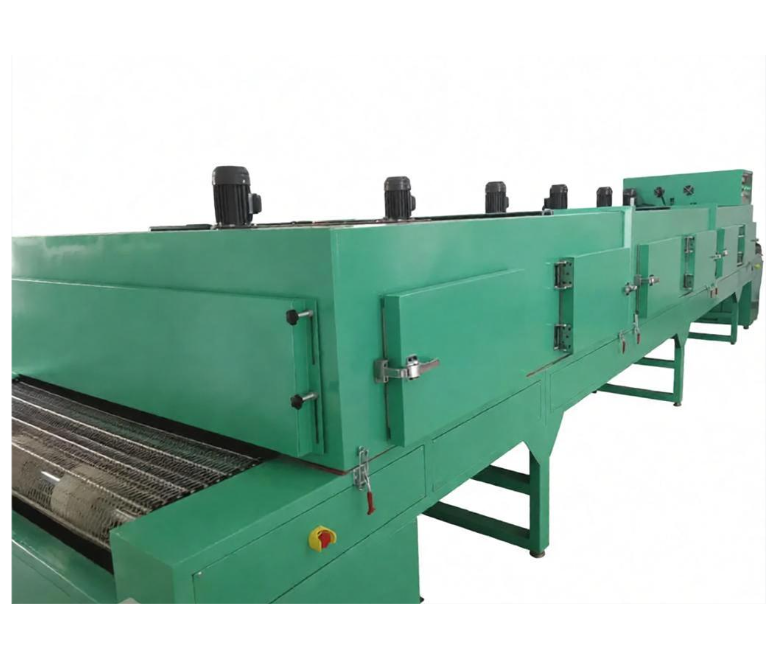

Ceramic Tunnel Oven Drying Line

The Ceramic Tunnel Oven Drying Line is an industrial-scale continuous thermal processing system widely used for continuous drying, dehydration, curing, and sintering of various industrial products.With a continuous conveyor structure and precise temperature control system, the equipment enables stable and uniform heating performance, making it an essential production unit for ceramic manufacturing, electronic materials, new energy industries, and other high-temperature processing applications.

Applications

Ceramic Products

Used for drying and initial firing of daily-use ceramics, architectural ceramics, and artistic ceramics.

Electronic Components

Used for baking electronic ceramics, multilayer ceramic capacitors (MLCC), and ceramic substrates.

New Energy Materials

Used for continuous drying of lithium battery cathode and anode materials, catalysts, and other functional materials.

Hardware and Glass Products

Used for moisture removal of metal components, annealing of glass products, and curing of surface coatings.

Technical Parameters

Product Features

High Efficiency and Energy Saving

The equipment combines heavy-duty refractory materials with advanced composite insulation layers, significantly reducing heat loss and improving thermal efficiency.

Precise Temperature Control

Adopts independent multi-zone temperature control technology to ensure uniform temperature distribution inside the furnace and stable heating curves.

Continuous Production

Equipped with a fully automatic conveying system, supporting 24-hour continuous production operation for large-scale manufacturing.

Intelligent and Environmentally Friendly

Integrated with exhaust gas discharge systems and waste heat recovery devices, reducing energy consumption and supporting low-carbon production.

Safe and Durable Operation

Equipped with over-temperature alarm and conveyor overload protection. Electrical components adopt high-quality industrial brands to ensure long-term stable operation.

FAQ

Q1: Can the length and width of the tunnel oven be customized according to factory space?

A:Yes. The equipment is a customized industrial system. The furnace length, width, conveyor structure, and heating configuration can be designed according to your production capacity, product dimensions, and available factory space.

Q2: Which heating method is more economical, electric heating or gas heating?

A:Electric heating provides more precise temperature control and easier maintenance, making it suitable for applications requiring high temperature accuracy. Gas heating generally offers lower operating costs and is more suitable for large-scale production lines with high output and high-temperature requirements.

Q3: Uneven furnace temperature may cause product cracking. How can this problem be solved?

A:The equipment adopts independent multi-zone temperature control technology and is equipped with high-temperature hot air circulation fans inside the furnace. This ensures uniform heat distribution, minimizes temperature differences, and prevents product cracking caused by uneven heating.

Q4: Can the conveyor speed be adjusted? What is the variable frequency adjustment range?

A:Yes. The conveyor system adopts variable frequency stepless speed control. The running speed can be freely adjusted according to different product sizes, materials, and required heating times.

Q5: What is the warranty period? Is on-site installation provided?

A:The complete machine is provided with a 12-month free warranty (excluding wearing parts). We provide on-site installation, commissioning, and operator training services to ensure smooth equipment operation.
