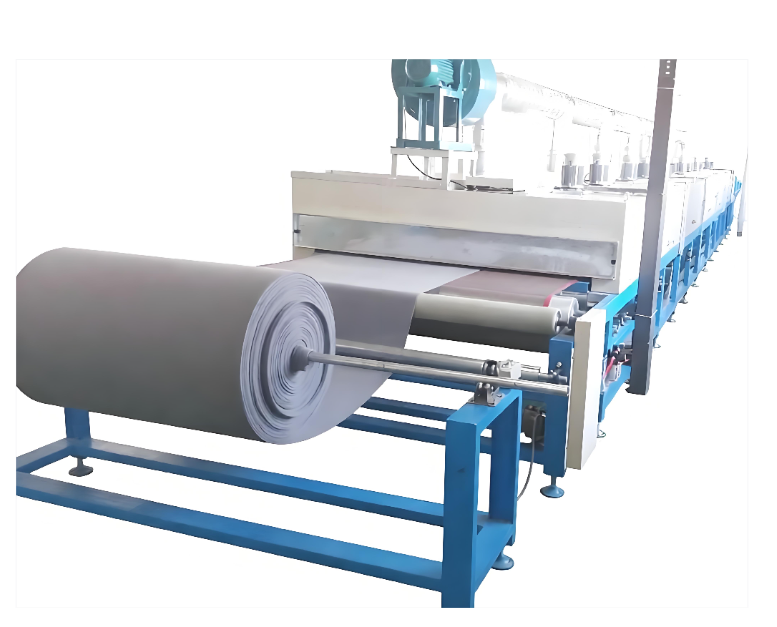

Fabric Moisture Drying Tunnel Furnace

The Fabric Moisture Drying Tunnel Furnace is a high-efficiency continuous drying system that utilizes infrared heating, hot air circulation, or microwave technology.It is specially designed for industries such as textiles, printing and dyeing, and nonwoven fabric manufacturing. Through a conveyor system, wet fabrics are continuously transported into the constant-temperature drying tunnel, where moisture is rapidly and evenly evaporated to achieve automated continuous drying production.

Product Applications

Post-Dyeing Drying:

Used for moisture evaporation and color fixation after fabric dyeing and printing processes.

Coating Curing:

Used for heating, drying, and curing surface coatings, waterproof layers, and adhesive coatings on fabrics.

Fabric Setting:

Combined with tentering and heat-setting processes, it removes internal fabric stress and evaporates excess moisture.

Nonwoven Fabric Production:

Used for hot pressing and drying processes during nonwoven fabric manufacturing.

Product Parameters

Product Features

Uniform Drying:

Adopts multi-zone independent temperature control and hot air circulation systems to ensure consistent heating of both fabric surfaces and internal layers.

High Efficiency and Energy Saving:

High-density insulation materials combined with a hot air recovery system significantly reduce heat loss and energy consumption.

Variable Frequency Speed Control:

The conveyor system uses variable frequency control, allowing precise adjustment of conveying speed according to different fabric thicknesses and moisture contents.

Intelligent Operation:

PLC touch screen centralized control supports temperature curve setting, over-temperature alarm, and automatic power-off protection functions.

FAQ

Q1: What types of fabrics can this tunnel furnace dry?

A1:It is suitable for cotton, chemical fiber, silk, linen fabrics, blended fabrics, various nonwoven fabrics, and special coated fabrics.

Q2: How does the equipment ensure complete drying for fabrics with different thicknesses?

A2:The conveyor speed and working temperature of each heating zone can be adjusted through the PLC control panel. Thicker fabrics can be processed by reducing conveying speed or increasing drying temperature to ensure thorough drying.

Q3: What heating energy sources does the equipment support? Which one is the most economical?

A3:The equipment supports electric heating, natural gas heating, and steam heating. For long-term large-scale production, natural gas and industrial steam generally provide lower operating costs.

Q4: Is daily maintenance of the tunnel furnace complicated? What should be paid attention to?

A4:Maintenance is simple. Regular cleaning of dust and fabric fibers inside the furnace, checking conveyor belt tension, and adding high-temperature lubricating oil to the transmission chain are recommended to ensure stable operation.

Q5: Can the equipment be customized according to factory dimensions?

A5:Yes. The total tunnel length, conveyor belt width, machine body materials, and heating methods can all be customized according to production capacity, process requirements, and available installation space.
