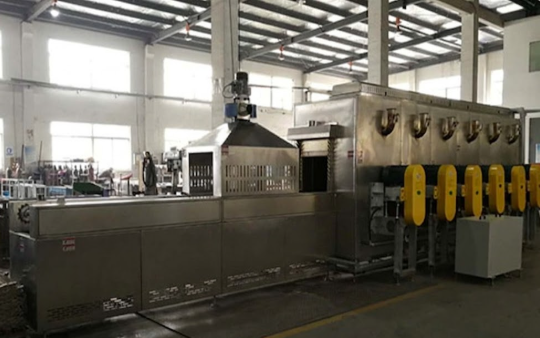

The 600°C high-temperature sintering tunnel furnace is designed for continuous sintering and calcination processes. It supports automated loading and unloading, ensuring stable performance and efficient high-temperature operation. The system is suitable for demanding thermal processing with consistent temperature control.
Suitable for activated carbon sintering, high-temperature metal part calcination, and related industries requiring continuous high-temperature processing.
| Item | Specification |
|---|---|
| Overall Dimensions | L10000 × W1180 × H2105 mm (excluding fans) |
| Infeed Section | 1500 mm |
| Heating Section | 5200 mm |
| Outfeed Section | 3300 mm (including 1500 mm cooling section) |
| Inlet Size | 400 × 380 mm |
| Inner Chamber Size | L5200 × H300 × W450 mm |
| Temperature Range | Ambient to 600°C (adjustable, constant temperature) |
| Temperature Uniformity | ±4% |
| Temperature Fluctuation | ±5°C |
| Heating Rate | ≥10°C/min |
| Outer Surface Temperature | ≤ Ambient +25°C (≤ +30°C at joints) |
| Heating Method | SUS310S stainless steel finned air heating tubes |
| Air Circulation | 6 high-temperature fans, top-down circulation |
| Power Supply | 380V, 3-phase, 50Hz |
| Heating Power | High-temp section: 45 kW × 4; Low-temp section: 30 kW × 2 |
| Total Power | Approx. 280 kW |
High-temperature capability up to 600°C
Continuous operation with automatic loading and unloading
Multi-section heating design for stable processing
Efficient air circulation with high-temperature fans
Durable SUS310S heating elements for long service life
Stable temperature control with low fluctuation
Integrated cooling section for improved production efficiency
1. What materials can be processed in this furnace?
It is suitable for activated carbon, metal components, and other materials requiring high-temperature sintering or calcination.
2. What is the maximum temperature?
The furnace can reach up to 600°C.
3. How is temperature uniformity maintained?
It uses multiple heating sections and forced air circulation with high-temperature fans.
4. Is continuous production supported?
Yes, it is designed for automated continuous operation with loading and unloading systems.
5. What type of heating elements are used?
SUS310S stainless steel finned heating tubes are used for durability and efficient heat transfer.
