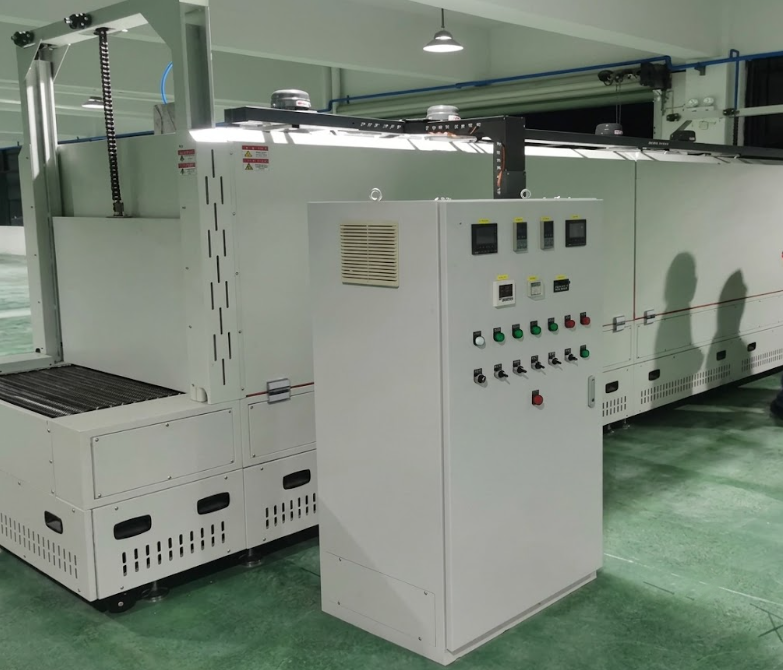

The Curing Tunnel Oven is a continuous heating system designed for drying and curing processes in industrial production. It adopts a conveyor-based tunnel structure with multi-zone temperature control, enabling stable and consistent processing of products. The equipment is suitable for applications requiring controlled heating conditions and continuous workflow.
The Curing Tunnel Oven is widely used in industries requiring thermal curing and drying processes, including:
(1) Coating and painting curing processes.
(2) Adhesive and resin curing applications.
(3) Electronic components drying and heat treatment.
(4) New material processing and thermal forming.
(5) General industrial product drying lines.
The equipment can be designed in accordance with relevant industrial and safety standards:
(1) GB/T 10067 Basic Technical Requirements for Industrial Electric Heating Equipment
(2) GB/T 30435 Energy-saving Monitoring Methods for Industrial Heating Equipment
(3) General electrical safety and manufacturing standards
| Item | Specification |
|---|---|
| Equipment Type | Curing Tunnel Oven |
| External Size | L5600 × W1200 × H1800 mm |
| Heating Zone Length | 4600 mm |
| Loading/Unloading Area | 500 mm each side |
| Inner Chamber Size | L4600 × W800 × H650 mm |
| Conveyor Width | 750 mm |
| Temperature Zones | 2 zones with independent control |
| Temperature Range | Room temperature ~ 200℃ |
| Temperature Uniformity | ±5℃ (no-load, constant condition) |
| Temperature Control Accuracy | ±1℃ |
| Heating Rate | 5℃/min |
| Air Circulation | Forced hot air circulation (side and bottom) |
| Power Supply | 380V, 50Hz, three-phase five-wire |
| Heating Element | Stainless steel finned heating tube (304) |
| Total Power | Approx. 45KW |
(1) Continuous conveyor design for stable production flow.
(2) Independent temperature zones for flexible process control.
(3) Forced hot air circulation improves heating consistency.
(4) Suitable for various curing and drying applications.
(5) Simple operation with stable performance.
(6) Compact structure, easy to integrate into production lines.
(1) What is a Curing Tunnel Oven used for?
A Curing Tunnel Oven is mainly used for continuous drying and curing processes in industrial production, such as coatings, adhesives, and electronic components, ensuring stable and efficient processing.
(2) Can the Curing Tunnel Oven handle different products?
Yes. The oven is suitable for a wide range of products, and process conditions can be adjusted to meet different curing and drying requirements.
(3) Is the Curing Tunnel Oven suitable for continuous production?
Yes. The conveyor-based tunnel design allows products to move continuously through the heating zones, making it ideal for automated production lines.
(4) How does the oven maintain consistent processing results?
The system uses controlled heating zones and air circulation to provide stable processing conditions, improving product consistency during curing.
(5) Can the Curing Tunnel Oven be customized?
Yes. The size, conveyor system, and configuration can be adjusted according to production requirements and factory layout.
