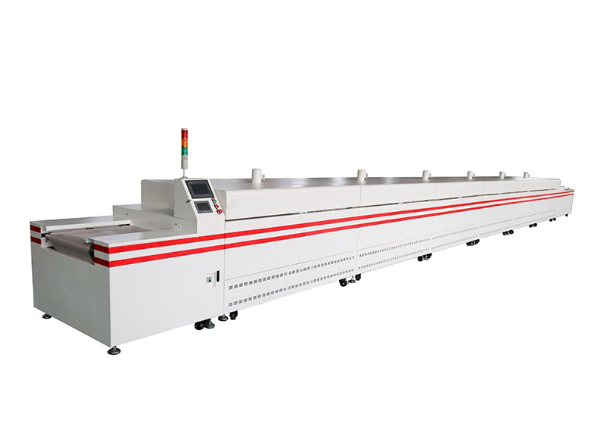

The Clean Tunnel Drying Oven is designed for continuous drying and curing processes that require a clean production environment and stable temperature control. The equipment adopts a SUS304 stainless steel inner chamber, low-particle conveyor structure, precise PID temperature control system, and optimized hot air circulation design to ensure uniform heating and reliable drying performance.
With an adjustable temperature up to 260℃, this tunnel oven is suitable for various industrial drying applications requiring high temperature resistance, cleanliness control, and consistent product quality.
The Clean Tunnel Drying Oven is widely used for continuous drying, baking, and curing processes in industries such as:
Electronics and precision components
Optoelectronic products
Glass products
PET film and cover lens processing
Printed materials and coating drying
Adhesive curing processes
Cleanroom production lines requiring low contamination control
It is suitable for applications where product appearance, dimensional stability, and surface quality are critical.
| Item | Specification |
|---|---|
| Equipment Type | Clean Tunnel Drying Oven |
| Power Supply | AC380V, 3 Phase, 50Hz, 68KVA |
| CDA Supply | 16L/min, 5.0–7.0 kg/cm² |
| Exhaust Capacity | MAX 10.0 m³/min |
| Exhaust Pipe | Central exhaust pipe Ø100mm × 6 pcs |
| Exhaust Temperature | Below 150℃ |
| Conveyor Speed | 0.3–3.0 m/min adjustable |
| Standard Working Speed | 1.0 m/min |
| Conveyor Material | PET-FILM & COVERLENS clean conveyor belt |
| Conveyor Belt Color | Milky white |
| Working Width | 1500mm |
| Temperature Range | Adjustable up to 260℃ |
| Temperature Uniformity | ≤±5℃ (excluding inlet and outlet areas) |
| Inner Chamber Material | SUS304 stainless steel plate, thickness 1.2mm |
| Insulation Material | High-density aluminum silicate ceramic fiber insulation |
| Door Sealing | High-temperature silicone sealing gasket |
| Temperature Controller | OMRON PID temperature controller |
| Temperature Control Accuracy | ±0.3% FS |
| Temperature Monitoring | Six-channel temperature recorder with USB data export |
| Heating Element | Medium-wave quartz electric heating tubes |
| Air Circulation Method | Special airflow design for uniform temperature distribution |
| Conveyor Drive System | Taiwan Wanxin geared motor + reducer + inverter + gear chain drive |
| Conveyor Belt Specification | PTFE (Teflon) conveyor belt, smooth surface |
| External Surface Temperature | Below 45℃ (excluding inlet/outlet and exhaust areas) |
| Upper Cover Opening | Electric cylinder lifting system with safety support rod |
| Safety Protection | Phase sequence protection, overload protection, control circuit protection, emergency stop, over-temperature protection |
High Temperature Clean Processing
The oven uses SUS304 stainless steel for the inner chamber, providing excellent corrosion resistance and cleanliness performance for high-temperature production environments.
Stable Temperature Uniformity
The optimized airflow circulation structure ensures even heat distribution inside the tunnel, with temperature uniformity controlled within ±5℃.
Precision Temperature Control System
Equipped with OMRON PID temperature control technology and SSR solid-state relay output, the system provides accurate and stable temperature adjustment.
Low Particle Generation Design
The inner chamber is fully argon arc welded, and the conveyor mesh is supported by small rollers to reduce friction and particle generation.
Reliable Conveyor Performance
The PTFE conveyor belt features a smooth surface to prevent product scratches, edge damage, and contamination during transportation.
Efficient Heating Performance
Medium-wave quartz heating tubes provide fast heating response and stable drying results.
Product Quality Protection
The optimized drying process helps prevent product defects such as yellowing, white spots, bubbles, over-baking, scratches, and contamination.
Dust and Static Control
The inlet is equipped with a dust-removing roller to keep the conveyor clean, while the outlet can be equipped with a static elimination bar to reduce electrostatic issues.
Safe Operation System
Multiple safety functions including emergency stop, overload protection, phase protection, and over-temperature protection ensure safe equipment operation.
1. What is the maximum temperature of this clean tunnel drying oven?
The clean tunnel drying oven supports an adjustable temperature up to 260℃. The actual operating temperature can be customized according to product materials and process requirements. The PID temperature control system ensures stable heating conditions during continuous production.
2. What industries use clean tunnel drying ovens?
This equipment is commonly used in electronics, optoelectronics, glass processing, film coating, adhesive curing, and precision component manufacturing. It is especially suitable for production environments requiring clean processing, stable temperature, and high product appearance quality.
3. How does the oven reduce product contamination?
The oven adopts a SUS304 stainless steel inner chamber, fully welded structure, low-friction conveyor support rollers, and dust-cleaning devices at the inlet. These designs reduce particle generation and help maintain a cleaner production environment.
4. Can the conveyor width and heating temperature be customized?
Yes. The conveyor width, tunnel length, heating zones, temperature range, conveyor material, and control system can be customized according to customer product size and production requirements.
5. What maintenance is required for this tunnel drying oven?
Routine maintenance includes cleaning the conveyor belt, checking heating elements, inspecting temperature sensors, maintaining the drive system, and cleaning dust-removal components. Regular maintenance helps maintain stable operation and extend equipment service life.
