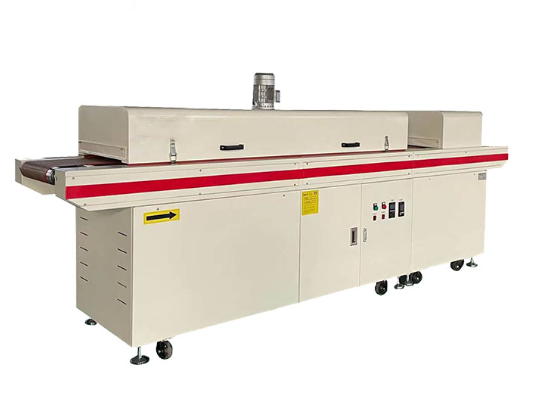

Precision Tunnel Oven G-C3500A

The Precision Tunnel Oven G-C3500A is a compact and efficient continuous heating system designed for precision drying and curing processes. The equipment adopts an imported medium-wave IR heating system with PID temperature control, providing fast heating response, stable temperature performance, and energy-efficient operation.

The tunnel oven features a stainless steel conveyor system, adjustable conveyor speed, sealed inner chamber structure, and optimized insulation design. It is suitable for applications requiring controlled heating, uniform temperature distribution, and stable product transportation.

Applications

The Precision Tunnel Oven G-C3500A is widely used for precision drying, heating, curing, and thermal processing of electronic components and industrial products.

Typical applications include:

Electronic component drying and curing

Precision parts heating processes

Optical and electronic material processing

Adhesive curing applications

Small-size product thermal treatment

Laboratory and production line heating processes

The conveyor width and heating zone design can be customized according to different product sizes and production requirements.

Specifications

Features

(1) Precision Temperature Control

Equipped with PID automatic temperature control technology and SCR power regulation, ensuring stable heating performance and accurate temperature management.

(2) Fast and Efficient Heating

The imported medium-wave IR heating tube provides rapid temperature rise, high heating efficiency, long service life, and convenient maintenance.

(3) Stable Conveyor Operation

The stainless steel conveyor mesh combined with frequency converter speed adjustment enables smooth transportation without product deviation or interruption.

(4) Optimized Thermal Insulation Design

High-density ceramic fiber insulation reduces heat loss, improves energy efficiency, and maintains stable internal temperature conditions.

(5) Clean and Durable Chamber Structure

The inner chamber adopts SUS201 stainless steel with full argon welding sealing, reducing contamination risks and improving equipment durability.

(6) Easy Maintenance Design

The heating section side insulation covers and top cover are removable, allowing convenient inspection and maintenance.

(7) Safety Protection System

Integrated safety functions include leakage protection, overload protection, and over-temperature protection to improve operational safety.

(8) Customizable Configuration

Conveyor width, heating length, and equipment dimensions can be customized according to customer production requirements.

FAQ

(1) What is the Precision Tunnel Oven G-C3500A mainly used for?

The G-C3500A Precision Tunnel Oven is designed for continuous heating, drying, and curing processes requiring stable temperature control. It is commonly used for electronic components, precision parts, adhesive curing, and industrial thermal processing applications. The conveyor structure allows products to move continuously through the heating zone, improving production efficiency and consistency compared with traditional batch ovens.

(2) What heating method does the G-C3500A tunnel oven use?

The G-C3500A uses an imported medium-wave infrared (IR) heating system. The IR heating tubes work with reflector structures to provide efficient radiant heating, allowing fast temperature rise and improved energy utilization. This heating method is suitable for applications requiring quick response, stable heating performance, and uniform thermal treatment.

(3) How does the tunnel oven control temperature accuracy?

The equipment uses a digital temperature controller with PID automatic tuning and SCR output control. The system continuously adjusts heating power according to temperature feedback, helping maintain stable temperature conditions during operation. The temperature uniformity can reach ±5% under empty chamber testing conditions.

(4) Can the conveyor system be customized for different products?

Yes. The conveyor width, conveyor structure, and transportation configuration can be customized according to product dimensions and production requirements. The standard G-C3500A model uses a 350mm stainless steel conveyor mesh with adjustable speed from 0.2 to 2.0m/min, suitable for continuous production applications.

(5) What safety features are included in this precision tunnel oven?

The G-C3500A is equipped with multiple safety protection systems, including leakage protection, over-temperature protection, and overload protection. These functions help prevent equipment damage caused by abnormal operating conditions and improve production safety during long-term continuous operation. The manufacturer also provides after-sales support and spare parts service.
