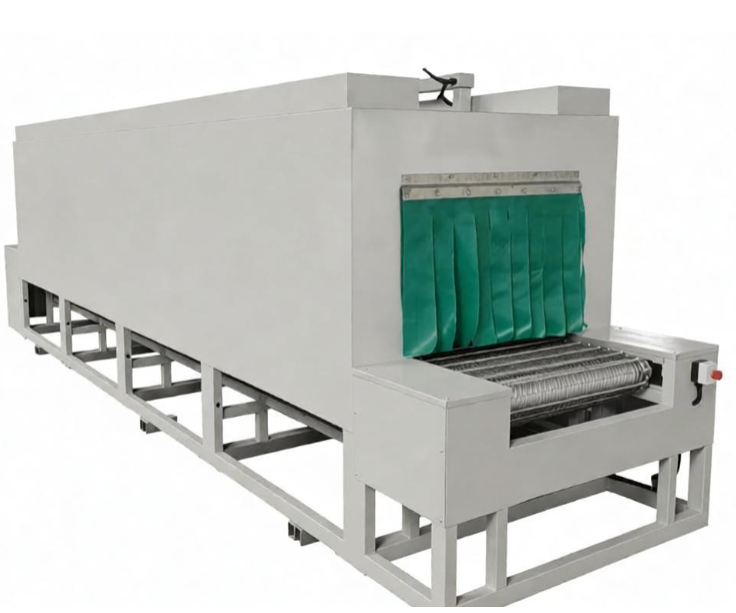

Spray Coating Curing Tunnel Oven

The Spray Coating Curing Tunnel Oven is an industrial continuous heating and drying system mainly used to cure powder coatings or paint coatings after spraying onto workpiece surfaces. Through high-temperature heating, the coating is melted, leveled, and cured into a uniform protective film with excellent adhesion and durability.It is widely used in automated coating production lines requiring continuous operation, stable temperature control, and consistent coating quality.

Core Applications

1. Automotive Industry

Used for coating and curing processes of:

Vehicle bodies

Wheels

Automotive components

2. Home Appliance Manufacturing

Used for drying and curing sprayed coatings on:

Refrigerator housings

Washing machine shells

Air conditioner casings

3. Hardware and Building Materials Industry

Used for surface coating treatment of:

Aluminum profiles

Security doors

Storage racks and metal structures

4. Electronic and Electrical Industry

Used for curing:

Electronic enclosures

Electrical cabinets

Insulating varnish on transformer coils

Applicable Standards

Safety Standards

Complies with GB 14443 — Safety Regulations for Coating Operations — Safety Technical Requirements for Coating Drying Rooms

Environmental Protection Standards

Complies with:

GB 16297 — Comprehensive Emission Standard of Air Pollutants

Local VOCs (Volatile Organic Compounds) emission control standards

Electrical Safety Standards

Complies with:

GB/T 5226.1 — Electrical Safety of Machinery — Electrical Equipment of Machines

Temperature Uniformity Requirements

The furnace temperature uniformity generally follows industry requirements, ensuring that the temperature difference within the effective heating zone is controlled within ±3°C to ±5°C.

Main Features

1. Continuous Production

The equipment adopts conveyor-based production line operation and can be integrated with upstream spraying systems to achieve automated large-scale coating production.

2. Uniform Heating Performance

The system mainly adopts hot air circulation technology to maintain stable furnace temperature and ensure high-quality coating melting, leveling, and curing.

3. Energy Efficient and High Performance

The oven body uses high-density insulation materials and is equipped with:

High-efficiency burners or heating elements

Optional waste heat recovery systems

to improve thermal efficiency and reduce energy consumption.

4. Intelligent Control System

Equipped with:

PLC control system

Touchscreen operation interface

Multi-zone independent temperature control

Over-temperature alarm function

to ensure stable and intelligent operation.

FAQ

Q1: What energy sources are commonly used for curing tunnel ovens?

A:The main heating energy sources include:

Natural gas

Liquefied petroleum gas (LPG)

Electricity (infrared heating or electric heating tubes)

Diesel fuel

Medium and large automated production lines usually use natural gas or biomass fuel systems due to their high heating efficiency and lower operating costs. Small-scale equipment or industries requiring high cleanliness standards commonly use electric heating systems.

Q2: What is the difference between curing temperatures for powder coating and paint coating?

A:The curing temperatures differ depending on the coating type:

Powder coating (electrostatic spraying):

Curing temperature: approximately 180°C–200°C

Curing time: approximately 15–20 minutes

Liquid paint coating:

Drying and curing temperature: generally 60°C–140°C

The actual temperature and curing time depend on the coating formulation, workpiece material, and production requirements.

Q3: How does the tunnel oven ensure uniform temperature distribution?

A:Temperature uniformity is mainly achieved through optimized hot air circulation duct design and proper fan airflow distribution.

The system usually adopts:

Top or side air supply

Bottom air return circulation structure

This allows hot air to continuously circulate inside the furnace, reducing temperature dead zones and improving coating curing consistency.

Q4: How are exhaust gases and odors generated during curing treated?

A:During coating curing, volatile organic compounds (VOCs) and odors may be generated. The equipment is usually equipped with an exhaust ventilation system that collects and sends the gases to downstream treatment equipment, such as:

Activated carbon adsorption systems

Regenerative catalytic oxidation (RCO) systems

Thermal oxidation (TO) systems

After treatment, the exhaust gases are discharged according to environmental emission requirements.

The Spray Coating Curing Tunnel Oven provides an efficient and reliable solution for modern automated coating production. With advantages including continuous operation, precise temperature control, uniform curing, energy efficiency, and intelligent automation, it is widely used in automotive, home appliance, hardware, electronic, and industrial coating applications.
