Brand:QINSUN
Model:G-CM050

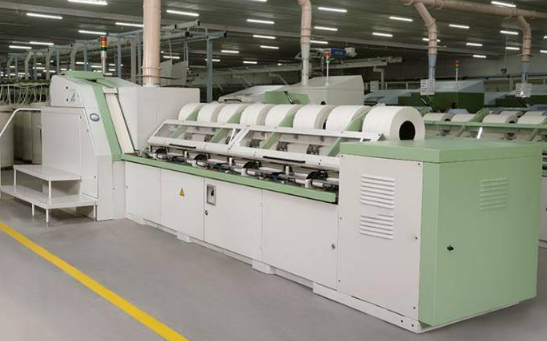

Combing machines are key pieces of equipment in the high-end pre-spinning process of the textile industry. They are mainly used to finely comb cotton laps after carding and lap forming to remove short fibers, impurities, and neps, thereby obtaining higher quality and more uniform and parallel fiber slivers (combed slivers).
Item | Specification |
Head | 8 |
Number of deliveries | 01 |
Automatic can change with Head distance | 470 mm |
Speed | 60,280,300,320 nips according to different process |
Bobbin size | 200x300 mm (inner 180 mm, outФ200x300 mm) |
Feed lap | Width:300mm; Dia.: less than 600 mm |
Lap count | 60-80 ktex |
Fiber length | 20-50 mm |
Noil | 8-25% |
Feed length per nipper | 4.3/4.7/5.2/5.9 (standard: 5.2) |
Drafting type | 3 over 5 /3over 3 /5 over 5, pneumatic load |
Draft ratio | Pre-draft: 1.14; 1.36; 1.5; total draft: 9-19.3 |
Draft gauge | Main draft: 41-54 |
Coiling style | Single can sing coiling |
Sliver can size | Ф600x1200 mm (with caster) |
Comber sliver count | 3-6 ktex |
Suction style | Central suction |
Compressed air | Pressure: 6-8x105Pa; capacity: 1.5m3/h |
Exhaust air volume | 3000 m3/h |
Suction pressure | 250 Pa |
Source of electricity | 380V±10%; 50Hz |
Auto couter | Meter & 4 shift |
Motor power | Inverter motor 3.5KW; brush motor 1.3KW |
Suction motor | 1.5 KW, if the suction style is group suction, then this suction motor is not necessary. |
Change gear & puly | Complement |
Top roller cots | Becker /Best Quality as per model |
Overall size | As per model |
U%: | < 3.5% |
Neps | < 50 |
One year warranty
