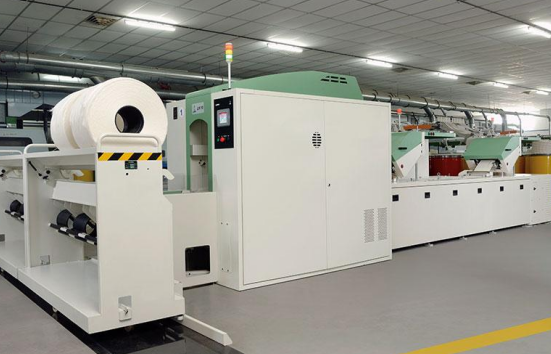

Lap Former G-LF040

1. Doubling

24/28/32

2. Drafting mode

2 over 3 or 3 over 3

3. Pneumatic weight, pressure

380-550n

4. Lap speed

80-120m/min

5. Output in theory

350 kg/h

6. Full lap package Weight (max)

22kg

7. Total Draft ratio

Max 1.80 times

Other

8. Adopting PLC to control the machine, the touch screen can be displayed the parameter and operation guide; inverter drives the main motor that is easy to set the speed of machine; during the lapping, the speed of main motor is reduced, which reduces the blocking.

9. Proportional valve for the pressure of sliver, which confirm the right pressure and the pressure can be displayed in the touch screen.

10. 28 pcs sensor which monitor the sliver and the machine will be stopped while there is no sliver, broken sliver and sliver stop.

11. Feed mode: two sides gantry creel, simple frame and less floor space.

12. Cone for UNI-lapper is 96 pcs.

13. Electric control: PLC touch screen exhaust upper (with suction motor) With three semi-automatic trolley
