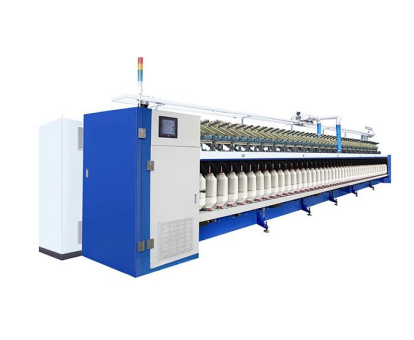

Simplex Machine G-SM060

1. Spindle gauge

220 mm

2. No. of spindles

24

3. Machine type

2 right hand or 2 left hands

4. Adaptable staple length for cotton

22-38 mm

5. Size of bobbin

dia.45mm, length 445 mm

6. Flyer spindle shaft diameter

22 mm (approx.)

7. Full package

dia.152mm length 406 mm

8. Suitable count

Nm 0.8-5.0

9. Total drafting range

4.13-13.28

10. Twist range

1.76-7.44/10 CM

11. Flyer type

Closed type with stainless tube with aluminum presser.

12. Programmable controller (PLC)

adopts SIEMENS / DELTA/FUJI/others

13. Frequency converter

one inverter for flyer and roller, one inverter for lifting and winding)

14. Drafting system

Four-roller short double apron system, with Tex parts pendulum arm SKF-PK1500, Top roller  LP1015, LP1015, LP1017, LP1015 and OH514 top apron cradle, cot of Armstrong.

15. Top rollers size

outside Dia. 28, 28,25,28mm, width 40mm, hardness: 800 ±30. Rubber cot maker: Armstrong

16. Top apron size

inside dia.37mm, thickness 0.9±0.02mm, width: 39.5mm

17. Bottom apron size

inside dia.38mm, thickness 1.2±0.02mm, width: 39.5mm

18. Bottom rollers

Dia.: 28.5mm, 28.5mm, 28.5mm, 28.5mm fluted hardened chrome-plated bottom roller, with needle bearing. Front, 2nd, Back Helical & 3rd-Knurled.

19. Mechanical spindle speed

max. 1600rpm Practical spindle speed: up to 1200rpm (for cotton), up to 1400RPM (for polyester)

20. Creel

gantry creel with five rows of guide rollers with bearing system (500X1100mm, stainless) Positive driven.

21. Counter

pre-determined length counter.

22. Shift counter for 4 shifts

3 shifts in normal, 1 for spare

23. Stop motion

Five photocells are equipped

24. Signal lamps numbers and each function

minimum 4 pieces

25. Multi-display panel

spindle speed, fixed length, accumulated length, current Length;
