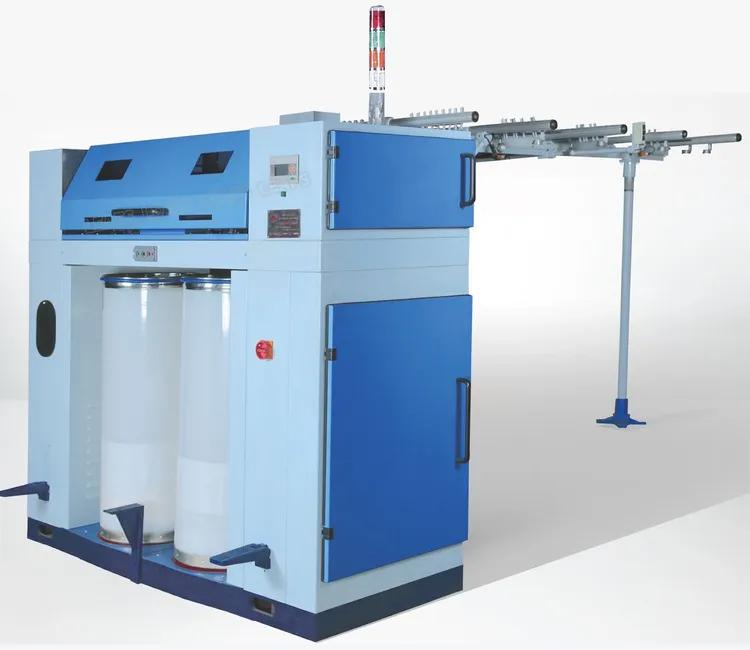

Drawing Frame G-DF030

Material

Cotton, manmade fiber, blends, fiber length 10-80 mm

No. of delivery

2 (Double coiler)

Doubling (x)

up to 8

No. of feeding end

6 - 8

Draft (x)

4 - 11

Drafting Type

3 over 3 with pressure bar and guide roller.

Loading Type

Pendulum arm spring weighting.

Delivered sliver weight (ktex)

1.25 – 7

Deliver speed

2.47 - 10m/s (200-600 m/min)

Feed can diameter

Φ400, Φ500, Φ600 Height: 1100(900) mm.

Delivery can diameter

Φ300, Φ350, Φ400, Φ500 mm Height: 100(900) mm.

Max. delivery speed

1100 m/min

Control System

The speed of main motor is controlled by inverter.

PLC is adopted for controlling system.

Auto Stop Motion

Photoelectric stop and micro switch stop motion.

Motors

Main Motor, Can Change Motor, Servo Motor, Suction motor,

Cleaning motor.

Stop motion Electric stop motion for breakage on top roller & calendar roller;

Electric stop motion for choke of sliver at gatherer & coiler tube;

Sliver length stop motion actuated by auto reset counter;

Electric stop motion for creel part. With Catalogue & operation manual.

Power

3 Phase AC, 380V/50HZ

others

Automatic filter cleaning

Central drafting system setting without gauges

Automatic can changer

Empty can feed for up to 3 reserve cans

Central lubricating strip

Control panel with graphic display
