Brand:QINSUN
Model:G-CM020

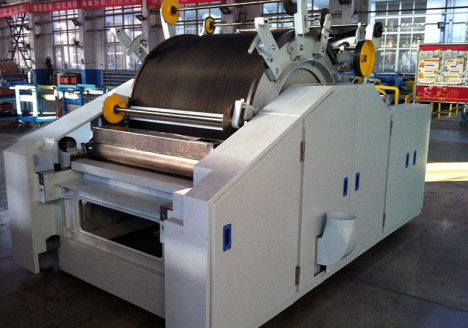

Carding machines are core equipment in the pre-spinning process of the textile industry. They are mainly used to comb, separate, remove impurities, uniformly mix and form webs (slivers) of cotton, chemical fibers and other fibers after opening and cleaning. They are important equipment connecting the opening and cleaning process with the drawing, roving and spinning processes.
Item | Specification |
Staple length | 22-76 mm |
Maximum production capacity | 80 kg/ Hour |
Sliver Weight | 3.5-6.5 g/m |
Weight of tuff web | 400-1000 g/m |
Inner Frame Width | 1000 mm |
Max delivery width | 250/min |
Licker in Dia | 250 mm |
Licker in Speed | 808-1300 in Ten step |
Doffer Dia | 706 mm |
Doffer speed | 50-80 |
Cylinder Dia | 1290 mm |
Cylinder Speed (RPM) | 330,360,420,450,500 |
Removing Flats (Working/ total) | 32/86 |
Flat speed(mm/Min) | 122-510 |
Can Size | 600 X 1100 or 900 X 1100 |
Suction Air Volume Pressure | 4500m3/ h-1000pa |
Suction point | Eight under Card |
Safety | full enclosed |
Install power | 6.57 KW |
One year warranty
