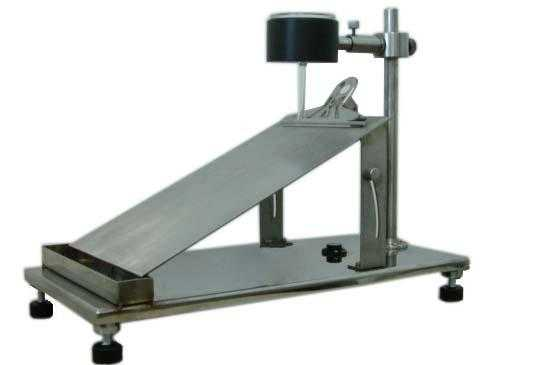

Nonwovens liquid loss tester

Nonwovens liquid loss tester  built-in loss of Taiwan and sample fixture for non-woven fabric materials for a specific test fluid slip and loss of performance.

Standards compliant

Edana152.0-99; ISO9073-11

The main purpose

Non-woven fabric liquid loss tester _ liquid slip and loss of the tester built-in loss of Taiwan and sample fixture for non-woven fabric materials for a specific test fluid slip and loss of performance.

Main features

1. with the requirements of the requirements of the loss of Taiwan and sample fixture;

2. having a dose device capable of giving a 25 mL test solution in a continuous stream within (4 ± 0.1) s;

3. the test liquid out of time manual operation, automatic recording, digital display;

4. can be equipped with loss of weighing system.

Test principle

A standard absorbent medium is placed under the nonwoven fabric to be measured and the combined sample is placed on a sloping pad to measure that when a particular amount of artificial urine flows down to the combined sample, the liquid penetrates the nonwoven Standard Absorbent Media Absorption, the liquid loss performance of the nonwovens sample was obtained by weighing the weight of the mass of the media prior to testing.

The main parameters

1. flow control range: 6.10mL / s ~ 6.41 mL / s;

2. slip and drain Taiwan angle control: 25 °;

3. slip and loss length: 250 ± 0.2mm;

4. timing: 60s, accuracy: ± 0.1s;

5. slip and loss Weight: 30g ± 0.01g.
