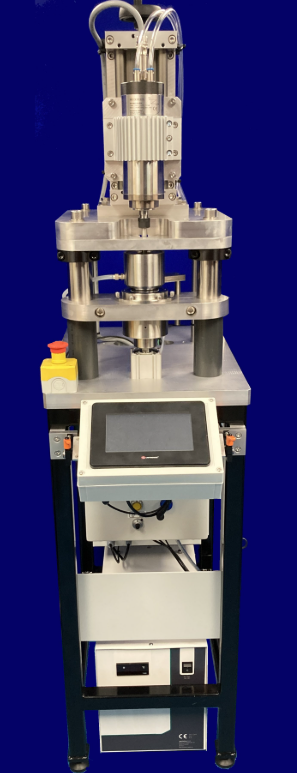

The STD-RCF 6 machine is designed to run the standard three ball on rod rolling contact fatigue test geometry, in which three balls, separated by a retainer, are loaded against a rotating rod specimen, by applying an axial force across two taper bearing cups, mounted above and below the three balls.
| Test Geometry: | Ball on rod |
| Rod Diameter: | 9.53 mm and 10 mm |
| Ball Diameter: | 12.7 mm |
| Motion: | Rotary |
| Contact Load: | 200 to 1200 N |
| Fatigue Cycles per Revolution: | 2.3828 with 9.53 mm diameter rod |
| 2.3654 with 10 mm diameter rod | |
| Speed: | 300 to 15.000 rpm |
| Motor: | 1.4 kW @ 15.000 rpm |
| Temperature: | Ambient to 80°C |
| Test Stations: | Up to 6 |
| Control: | PLC |
| Lubricant Service Module: | Included |
| Manually Controlled Parameters | |
| Load: | Pneumatic – actuators in parallel |
| Rotational Speed: | Each test station independently controlled |
| Temperature: | Each test station independently controlled |
| Vibration Level: | Each test station |
| Data Logged Parameters | |
| Load: | Pressure transducer – one per installation |
| Temperature: | Yes – each test station |
| Test Duration: | Yes – each test station |
| Services | |
| Electricity per Test Station: | 220/240V, single phase, 50 Hz, 4.5 kW |
| 110/120V, single phase, 60 Hz, 4.5 kW | |
| Clean, dry air: | 4 cfm at 8 bar (120 psi) |
