Detailed product descriptionBrand:STDColorimetric tube inner diameter:Φ32mm High 120 ~ 130mmAmb
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Brand: | STD | Colorimetric tube inner diameter: | Φ32mm High 120 ~ 130mm |
|---|---|---|---|
| Ambient temperature: | 5℃～40℃ | Relative humidity: | ≤85% |
| Power supply voltage: | AC 220V±10% 50Hz±10% | Power consumption: | <500W |
| Dimensions: | 400mm×320mm×295mm | Instrument weight: | 21kg |
| Standard color wheel: | 26 Φ14 Light Holes, 25 Standard Color Glass Sheets With Color Numbers 1-25 Respectively, 26 Holes Are Blank | Chromaticity: | 1～25 |
| Highlight: | oil analysis lab equipmentoil analysis equipment | ||

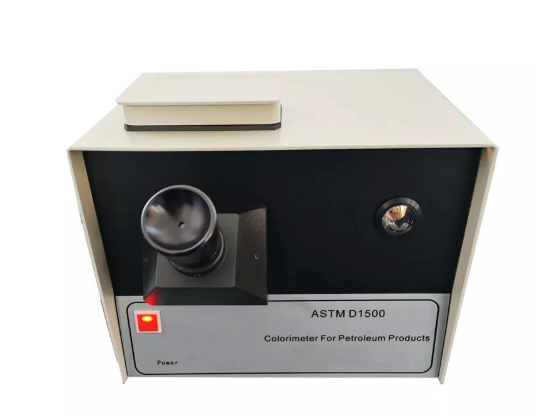

The colorimeter for petroleum products complies with the SH/T 0168 standard and can correspond to the 16 color numbers of GB/T 6540 and ASTM D1500. It is suitable for measuring the color of various lubricating oils and other petroleum products. When measuring, inject the sample of the petroleum product to be measured into the colorimetric tube, and then compare it with the standard color chip to determine its chromaticity and color number.
The instrument is composed of standard color disc, observation optical lens, light source and colorimetric tube.
The frosted milk shell bulb is used as the light source.
After the light source is filtered, it can evenly irradiate the color glass slide and colorimetric tube of the standard color wheel.
The optical eyepiece has the ability to adjust light and focus, and is easy to use.
| Colorimetric tube inner diameter | Φ32mm high 120 ~ 130mm |
| Ambient temperature | 5℃～40℃ |
| Relative humidity | ≤85% |
| Power supply voltage | AC 220V±10% 50Hz±10% |
| Power consumption | <500W |
| Dimensions | 400mm×320mm×295mm |
| Instrument weight | 21kg |
| Standard color wheel | 26 Φ14 light holes, 25 standard color glass sheets with color numbers 1-25 respectively, 26 holes are blank |
| Chromaticity | 1～25 |
