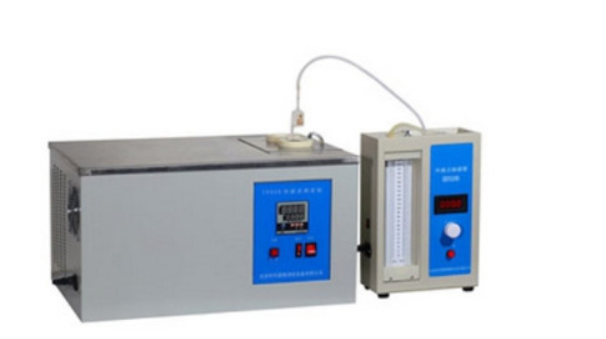

Cold Filtration Point Tester STD-SL-OA37

Detailed product description

Product description

The cold filter point tester conforms to SH/T0248. and is suitable for measuring the cold filter point of distillate fuels, including diesel engine fuels containing flow improvers or other additives, and fuels used in civil heating devices.

Technical features

1. Imported compressor refrigeration system ensures the required refrigeration depth

2. The built-in vacuum pump and electronic precision pressure balance system ensure that the suction filter pressure is automatically balanced at the set value

3. Automatically control the temperature difference between the cooling medium and the tested sample to ensure that the cooling rate is controlled and uniform

4. The internal precision microcomputer timing ensures the accuracy of the judgment results

Technical parameters

Temperature range: -60～50℃

Resolution: 0.1°C

Pressure range: 0～200.0KPa

Resolution: 1Pa

Working: cold tank single tank two baths, second bath isothermal

Temperature measuring element: PT100 (temperature sensor of JUMO company in Germany)

Refrigeration method Compressor refrigeration (French DANFOS)

Timing: 60.0s; division: 0.1s

Ambient temperature: 5℃～40℃

Relative humidity: ≤85%

Power supply voltage: AC 220V±10%50Hz±10%

Power consumption:<900W

Dimensions

Host: 600mm×450mm×4500mm

Suction filter: 250mm×150mm×380mm

Instrument weight

Host: 50kg, Suction filter: 5kg
